Ahead Systems, Inc.
Ahead Systems were an early graphics chipset manufacturer in the mid-to-late 1980s. They began operations in 1986, formed of ex-Genoa Systems engineers, and were based in San Jose, CA.
Their V5000 VGA chipset was popular with graphics card vendors such as Iris and AVGA.

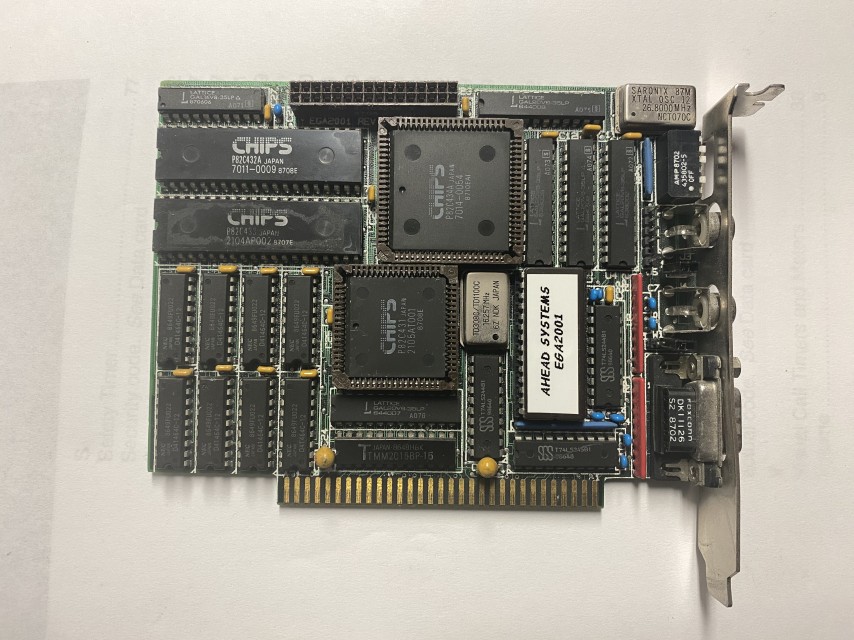

.jpg) EGA2001
Launched: Nov 1986
Bus: 8-bit ISA
Memory: 64 KB
Price: $399
The EGA2001 was compatible with EGA, CGA, Hercules and MDA standards, including a 132-column text mode. The unique feature of the EGA2001 was its ability to display Hercules 720 x 348 graphics on an NEC Multisync monitor or IBM 5154 Enhanced Color Monitor (or compatible).

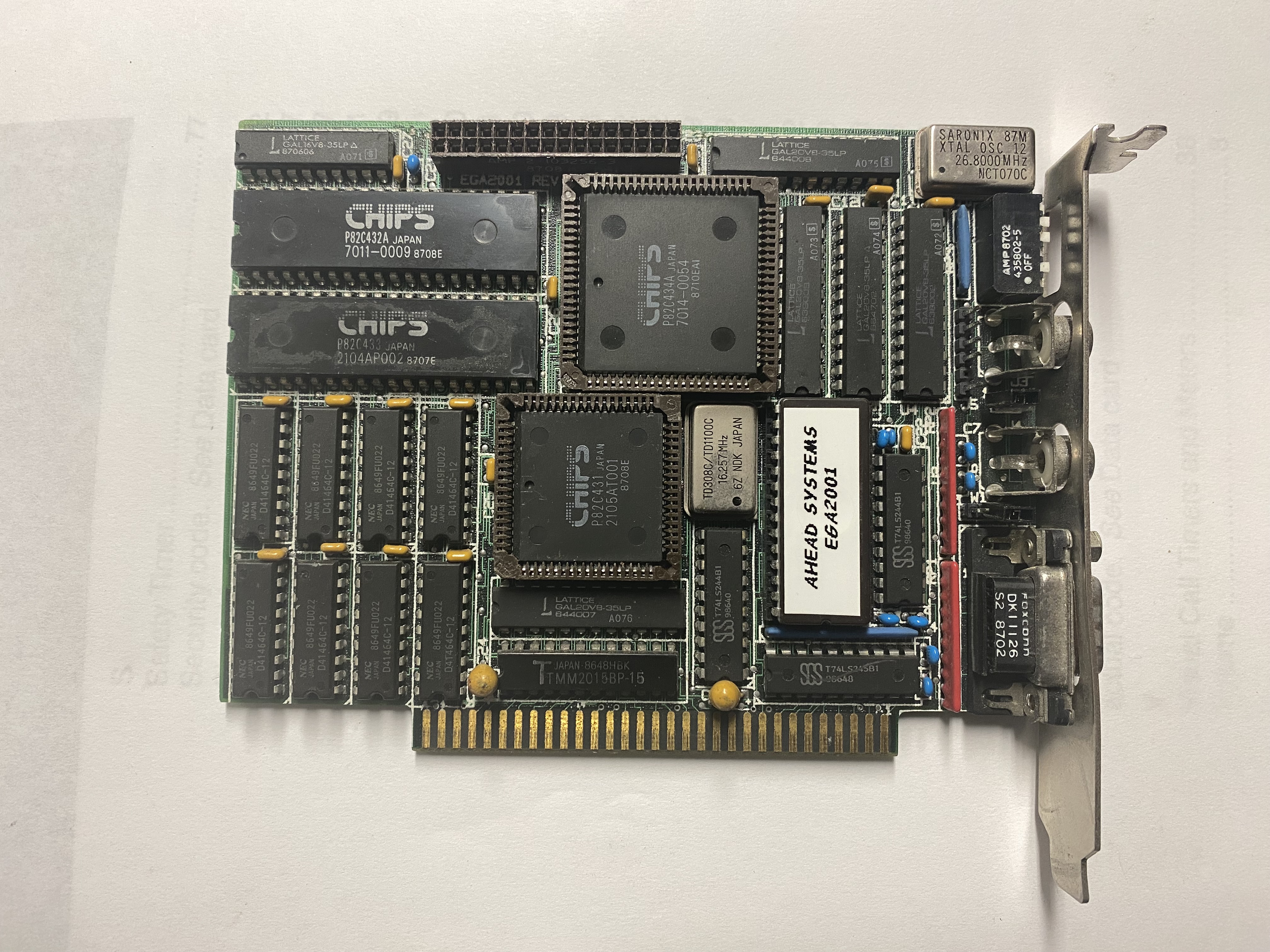

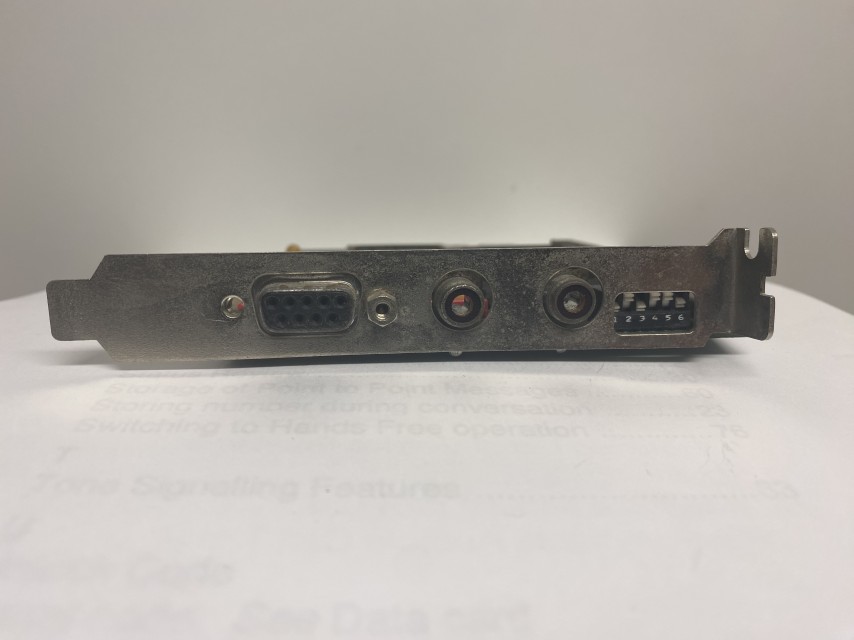

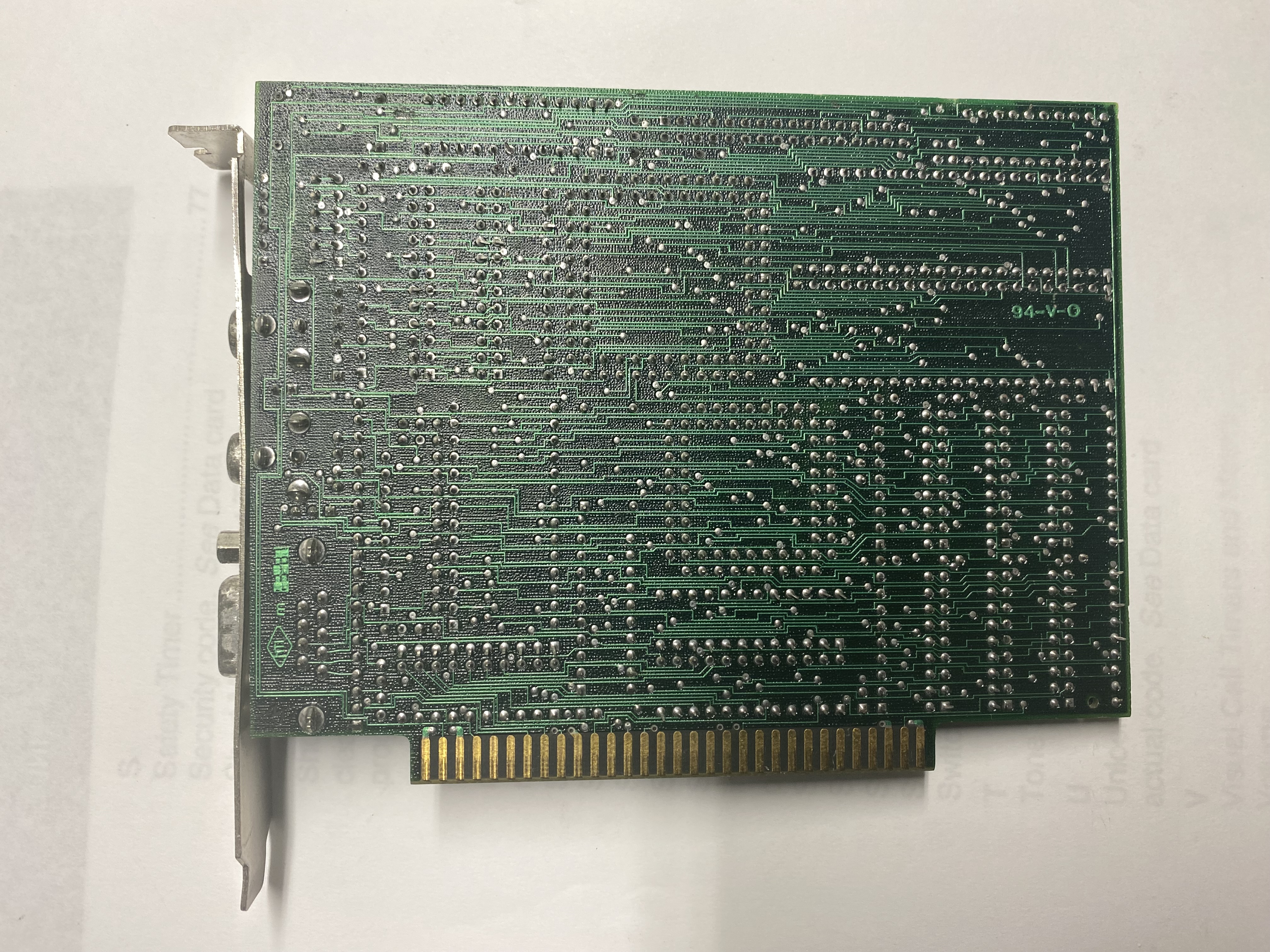

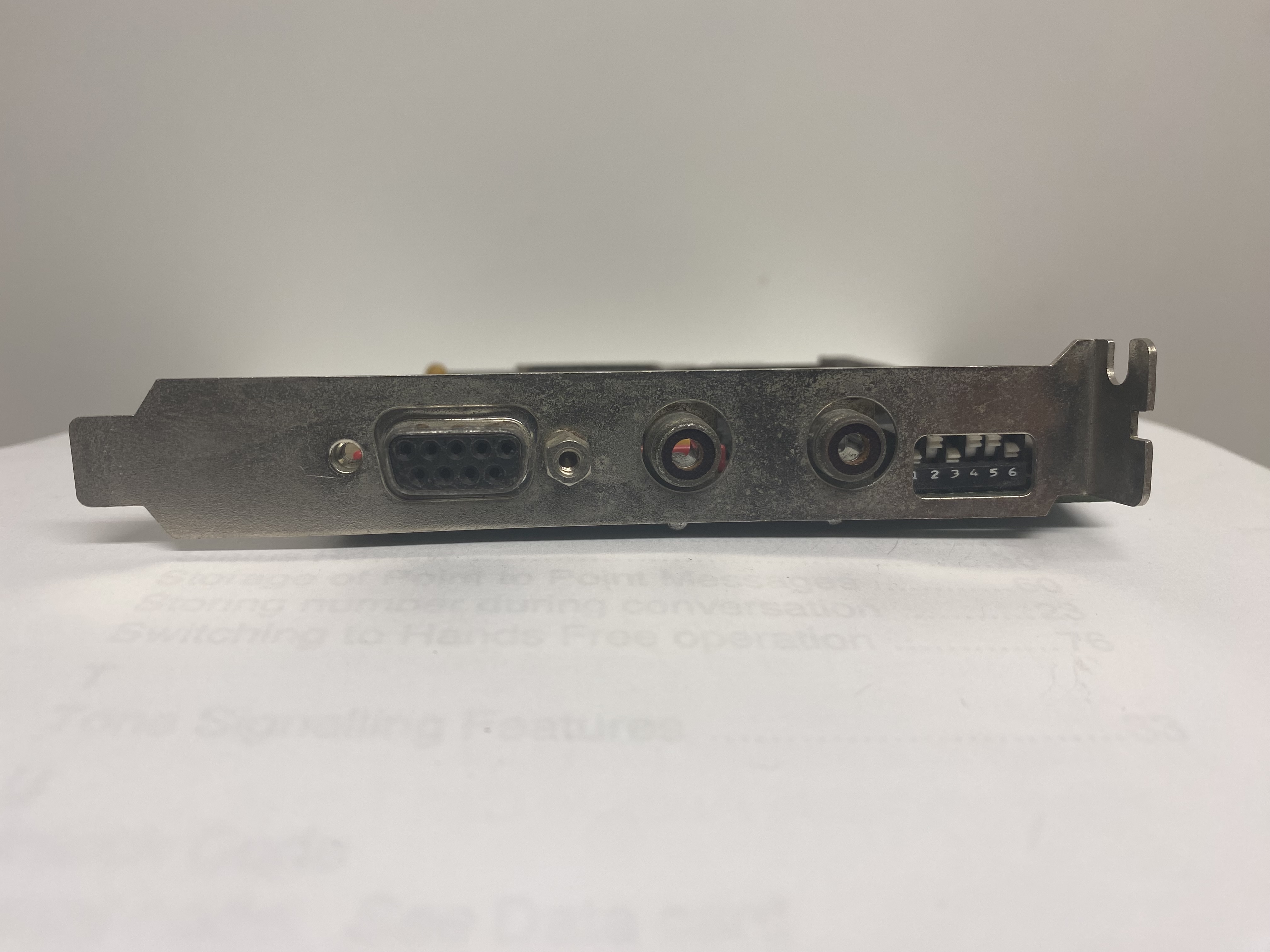

More Images
.jpg) .jpg)
Images and ROM provided by DOS Days' contributor David Rashani.
Click here to download the BIOS ROM. |
 EGA2001/Plus (EGA Wizard Deluxe?)
Launched: Nov 1986
Bus: 8-bit ISA
Memory: 64 KB
Price: $599
With all the capabilities of the EGA2001, the /Plus variant added extra-high resolution EGA mode of 640 x 480 in 16 colours from the EGA palette of 64. For this mode to work, an NEC Multisync monitor or equivalent is required.
It also got a 720 x 396 all-points addressable (APA) 16-colour mode that supported 3279 S3G IBM mainframe graphics. This would have been popular for terminal emulation boards running mainframe graphics applications on a PC. Again, a Multisync or compatible monitor was required for this.
For desktop publishing applications, the board also supported 80 characters x 66 lines. |
 VGA Wizard [Deluxe]
Launched: 1989
Chipset: Ahead V5000-50PC-B
Bus: 16-bit ISA
Memory: 256 KB, 512 KB or 1 MB
Part #:
Price: $199 (256 KB), $259 (512 KB) or $449 (1 MB)
The Deluxe suffix was reserved for the 1 MB version. Compatible with VGA, EGA, CGA, Hercules and MDA standards.
|
.png) V5000-50-PC-B aka VGA-102
Launched: 1990
Chipset: Ahead V5000-50PC-B
Bus: 16-bit ISA
Memory: 256 KB
Part #:
Price: ?
FCC ID: FWJ4ANVGAWIZ, FWJ4RNAVGA50

Video ROM BIOS Dump v1.05A (1990)
|
