ELSA Winner 1000 Trio
ELSA's first consumer graphics card for the PC was the Winner 1000 Trio, launched in 1994.
|
Released | 1994 |
| Bus | PCI | |
| Chipset | S3 Trio64 (86C764) | |
| Standards | VGA | |
| Memory | 1 MB or 2 MB DRAM (32-bit) | |
| RAMDAC | (Embedded, 135 MHz) | |

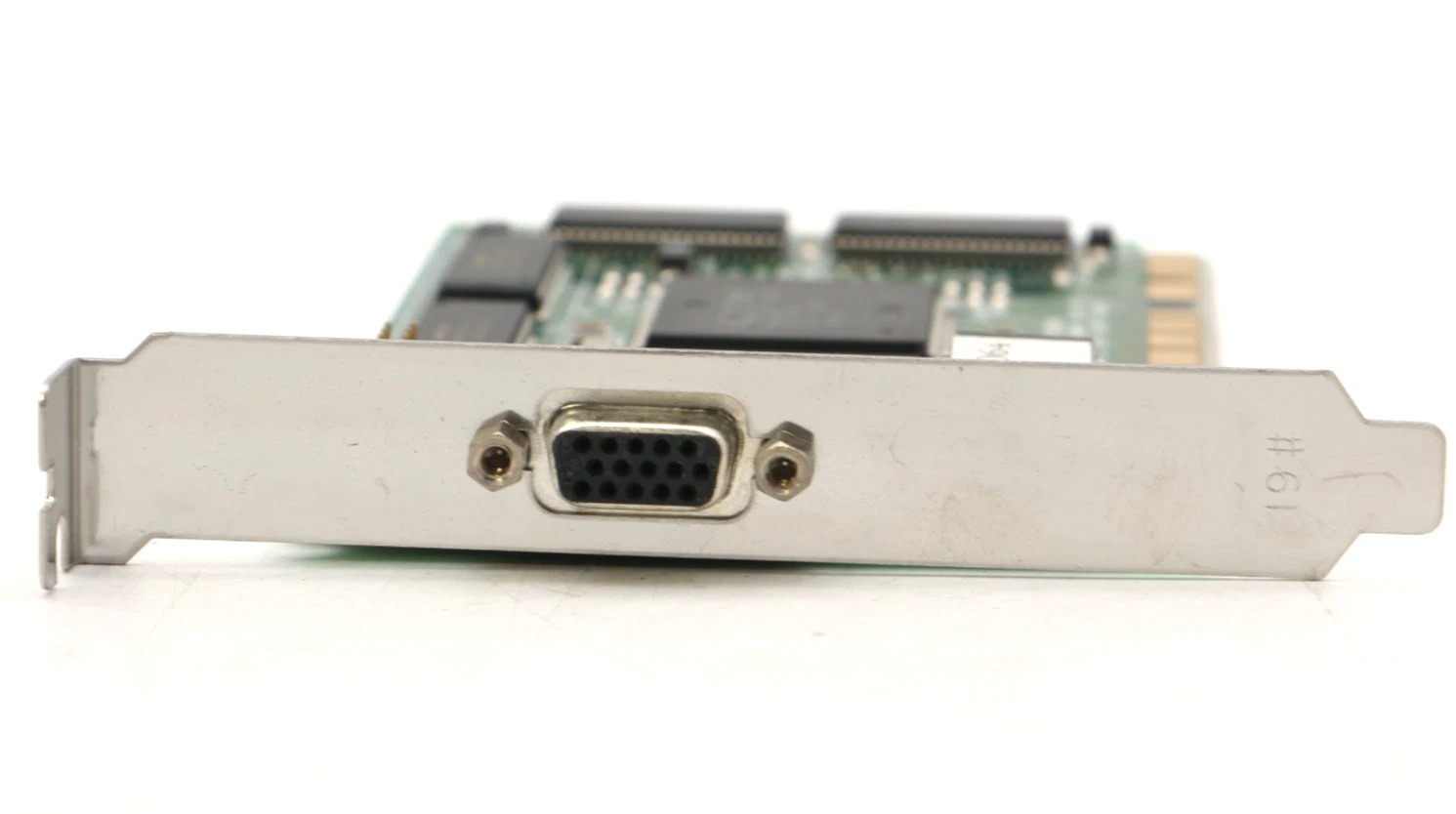

| Ports | 15-pin DSUB (analogue RGB video out) | |

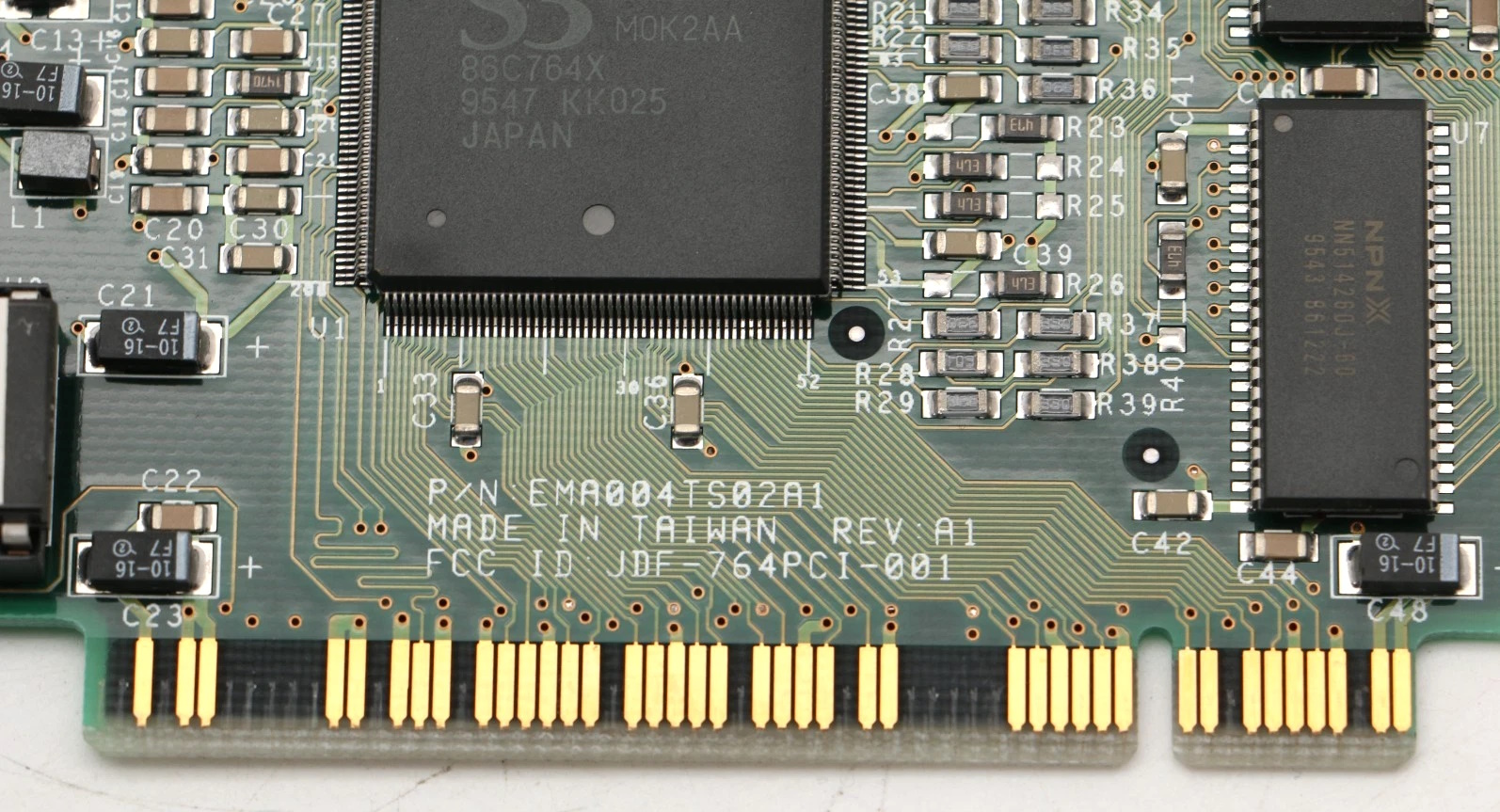

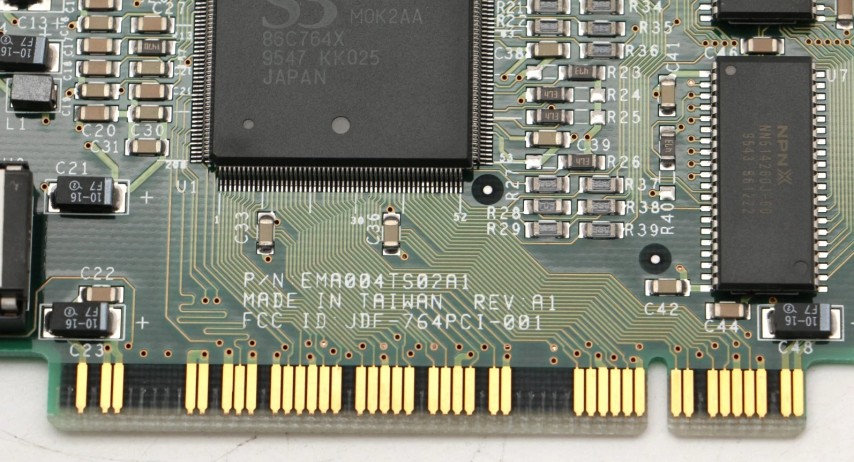

| Part # | EMA004TS02A1 | |
| FCC IDs | JDF-764PCI-001 | |
| Price | At launch: $ |
|
| See Also |
The ELSA Trio64 copied the S3 reference design of the Trio64 almost exactly, as did most other graphics cards manufacturers that employed S3's new 64-bit graphics accelerator chip in 1994.

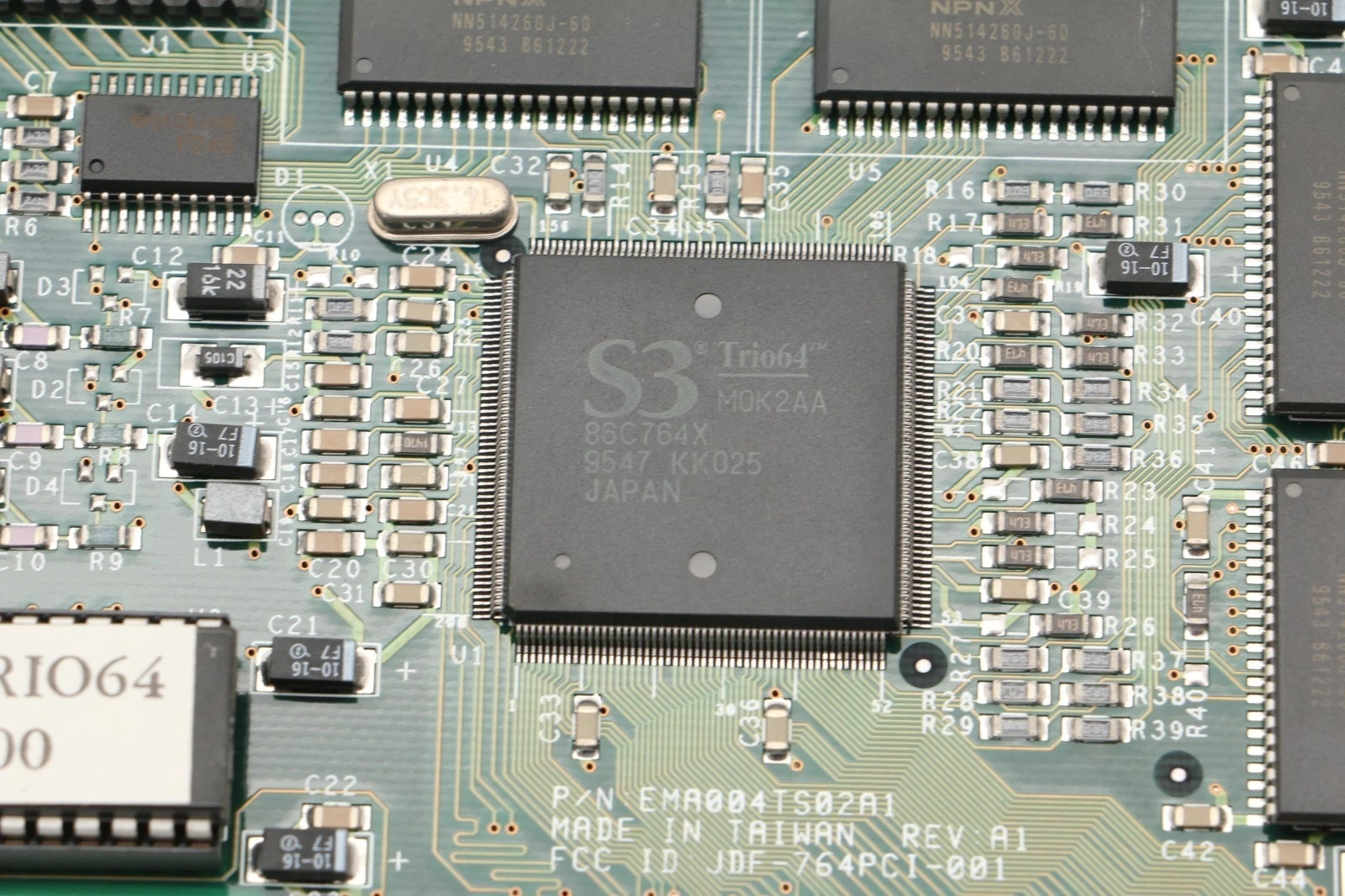

The Trio64 was S3's first shot at combining a RAMDAC, clock generator and the 2D graphics engine from the earlier Vision864 chip into a single ASIC. Despite the Trio64 itself supporting PCI and VLB buses, as well as up to 4 MB of DRAM, ELSA chose to limit their use to just the PCI bus and a maximum of 2 MB of RAM.

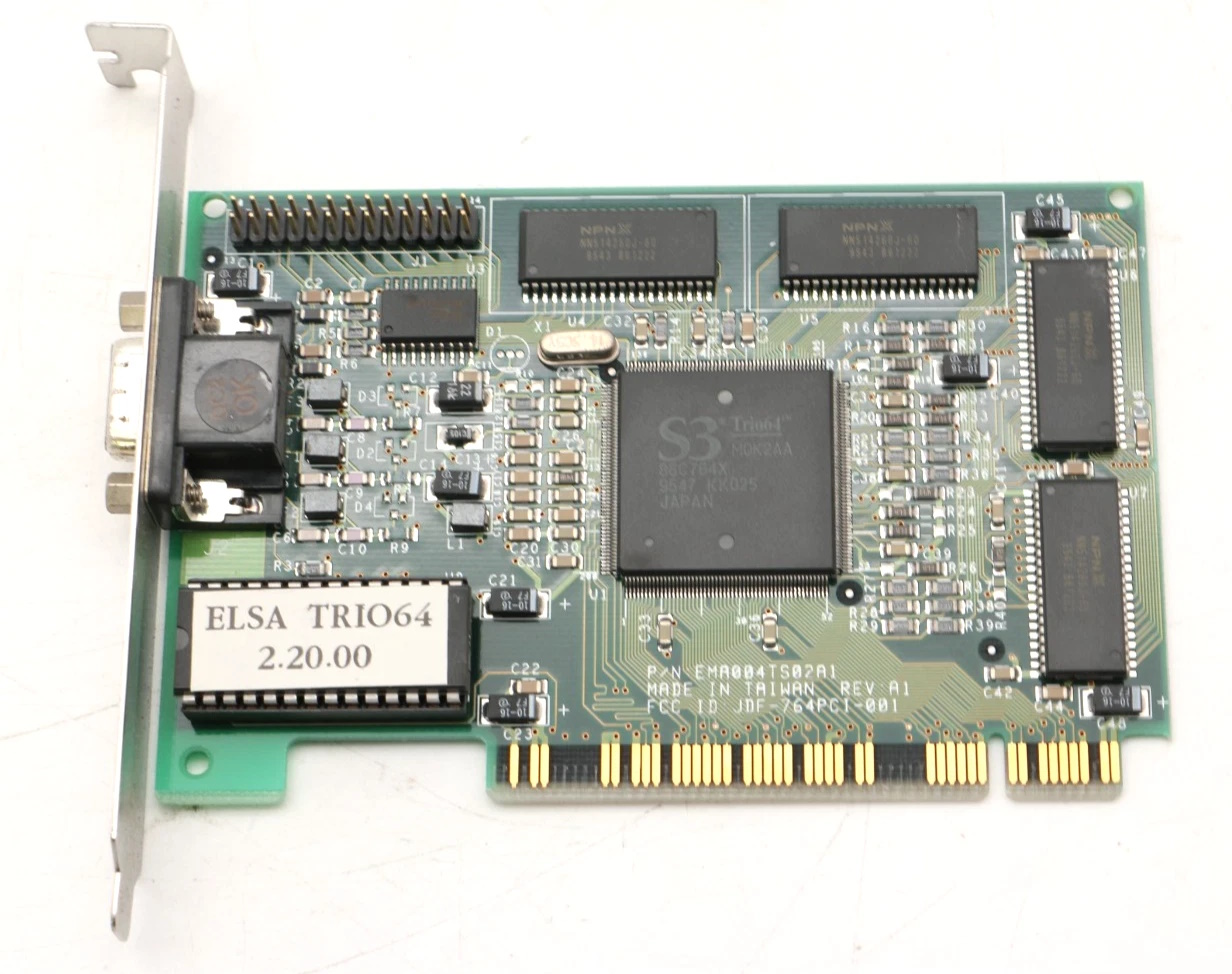

1 MB variants have the top two RAM locations empty. None of the RAM is socketed, so upgrading 1 MB card to 2 MB would require soldering.
Board Revisions
One board revision is known for the ELSA Trio64: A1.
Competition
In the Media
Setting it Up
I have no information on setting up the Trio64 card.
Downloads
S3 Trio64 reference drivers will likely work just fine with this card.
Operation Manual Get in touch if you can provide this missing item! |

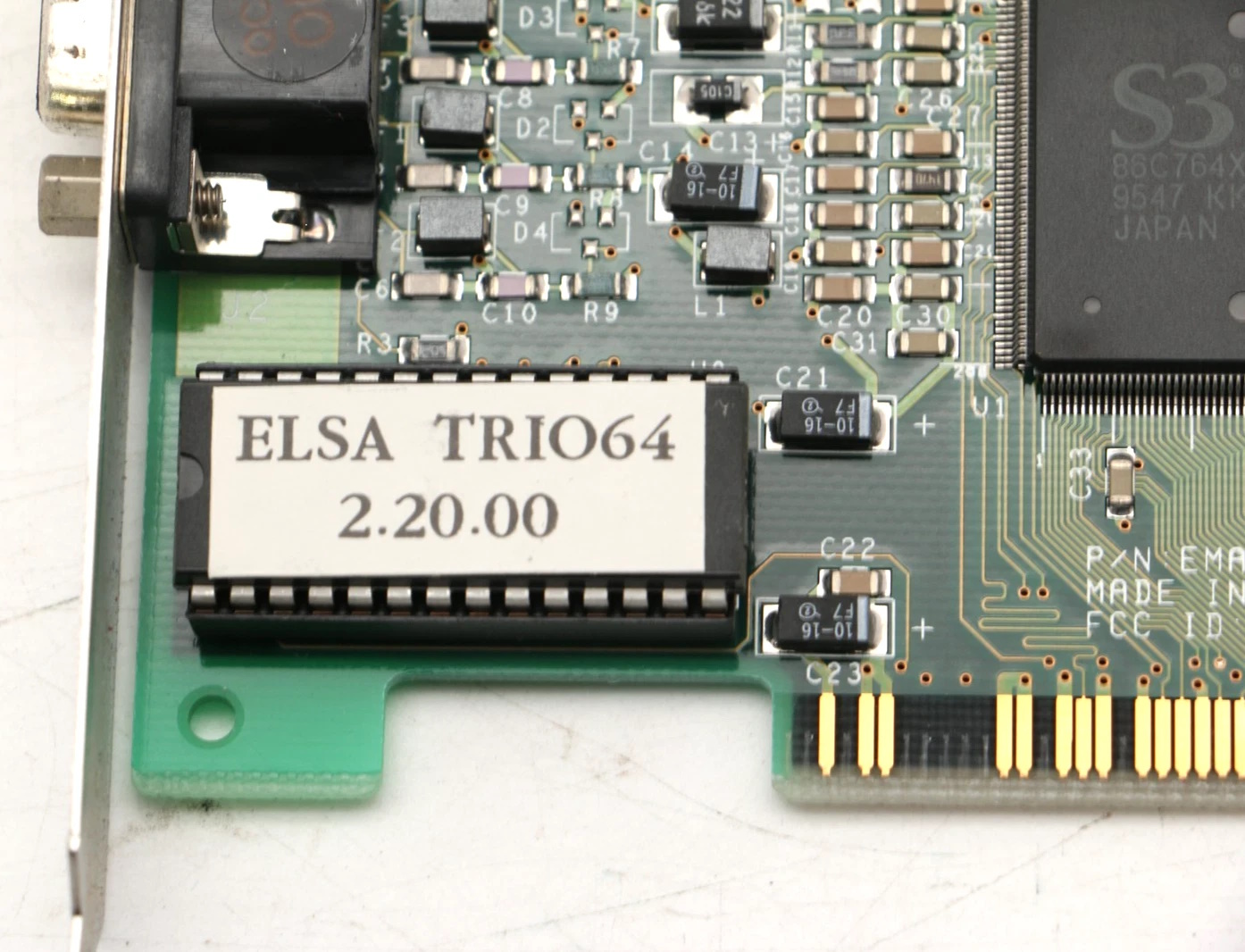

VGA BIOS ROM Get in touch if you can provide this missing item! |
VGA BIOS ROM Get in touch if you can provide this missing item! |
