ELSA Victory3D
ELSA's second gaming graphics card for the PC was the Victory 3D, launched in 1996.
|
Released | 1996 |
| Bus | PCI | |
| Chipset | S3 ViRGE (86C325) | |
| Standards | VGA | |
| Memory | 2 or 4 MB EDO DRAM (64-bit) | |
| RAMDAC | (Embedded, 135 MHz) | |
| Ports | 15-pin DSUB (analogue RGB video out) | |
| Part # | - | |
| FCC IDs | KJGVICTORY3D | |
| Price | At launch: $ |
|
| See Also |
The Victory3D was a low-end gaming graphics accelerator card. It was based on the S3 ViRGE chip (86C325) having a core clock of between 50 and 80 MHz with memory also running the same.
With 4 MB of RAM, the Victory3D could support resolutions up to 1280 x 1024 in 256 colours at a refresh rate of 75 Hz, or in 16 colours at a refresh rate of 85 Hz. At 1024 x 768 it ran 16.7 million colours at 75 Hz or 65,536 colours at 85 Hz.
Board Revisions
No information on board revisions is known for the ELSA Victory3D.
Some Victory 3D versions have memory slots for the rightmost four, others do not (perhaps OEM variants).
Competition
In the Media
Setting it Up
I have no information on setting up the Victory3D card.
Downloads
ELSA produced the WINMan Suite of tools for Windows 3.1, for the Winner, Victory, and GLoria cards. This allowed you to define new resolutions, set monitor
refresh rates, change the screen position and adjust the monitor
timing, get information about your graphics card, set DirectX settings, and find out the current refresh and horizontal scan
rates.
These were replaced with the ELSA Windows Tools for Windows 9x.
Operation Manual Get in touch if you can provide this missing item! |
VGA BIOS ROM Get in touch if you can provide this missing item! |
VGA BIOS ROM Get in touch if you can provide this missing item! |
DOS Utilities
DOS utilities include: Snoop and XRefresh |
Windows 3.1 Drivers
Windows 3.1 display drivers for Victory3D |
Windows 95 Drivers
Windows 95 display drivers for Victory3D |
Windows 95 Drivers
Windows 95 display drivers for Victory3D |
Windows NT 3.51 Drivers
Windows NT 3.51 display drivers for Victory3D |
Windows NT 4.0 Drivers
Windows NT 4.0 display drivers for Victory3D |
OS/2 Warp 3 & 4 Drivers
OS/2 Warp display drivers for Victory3D |
OS/2 Warp 3 & 4 Drivers
OS/2 Warp display drivers for Victory3D |
ELSA WinMan Suite for Windows 3.1
WINMan works for ELSA Winner, Victory, and GLoria cards. |
ELSA WinMan Suite for Windows 3.1
WINMan works for ELSA Winner, Victory, and GLoria cards. |
ELSA Windows Tools for Windows 95
Windows Tools works for ELSA Winner, Victory, and GLoria cards. |
DirectX 5.0 for ELSA Victory3D
DirectX 5.0 that came with the Victory3D. |
More Pictures

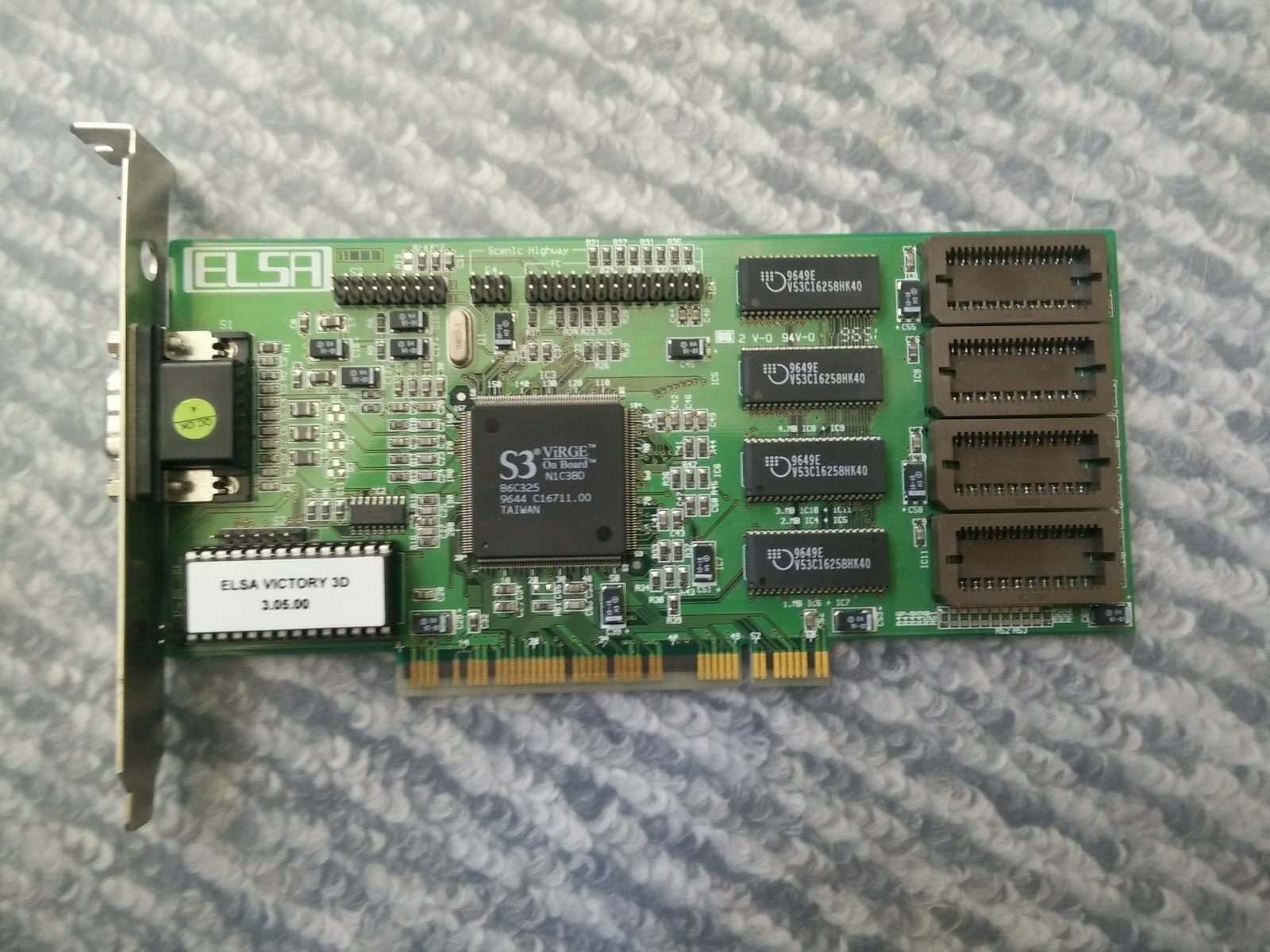

ELSA Victory3D 2 MB
ELSA Victory3D 2 MB (different board revision) and retail packaging
