STB Lightspeed
The Lightspeed, also known as Lightspeed 50/50, was launched in 1994, and was based on the Tseng Labs ET4000/W32p chipset.
 |
Released | 1994 |
| Bus | VESA Local Bus or PCI | |
| Chipset | Tseng Labs ET4000/W32P | |
| Standards | Hercules, CGA, EGA, VGA | |
| Memory | 2 MB EDO DRAM | |
| RAMDAC | - | |
| Ports | 15-pin DSUB (analogue video out) | |
| Part # | 1X0-0292-809, STBLSVL | |
| FCC ID | EKSUSAW32P, EKSUSAW32PPCI | |
| Price | Nov '94: $179 | |
| See Also | PowerGraph C33 |
The Lightspeed was available in both VESA Local Bus and PCI bus formats.
Board Revisions
I don't have any information on board revisions for the Lightspeed card.
Competition
In the Media
Setting it Up
Downloads
For Windows 95 or NT drivers, just use the Tseng Labs ET4000/W32p drivers that come with the operating system.
Operation Manual Get in touch if you can provide this missing item! |
Original Utility Disk LightSpeed VL/PCI Utility/Drivers release 1.3 |
ROM BIOS 50/50 v1.0 Get in touch if you can provide this missing item! |
Windows 3.1 Drivers LightSpeed VL/PCI Windows 3.1 Drivers release 2.4 |
More Pictures

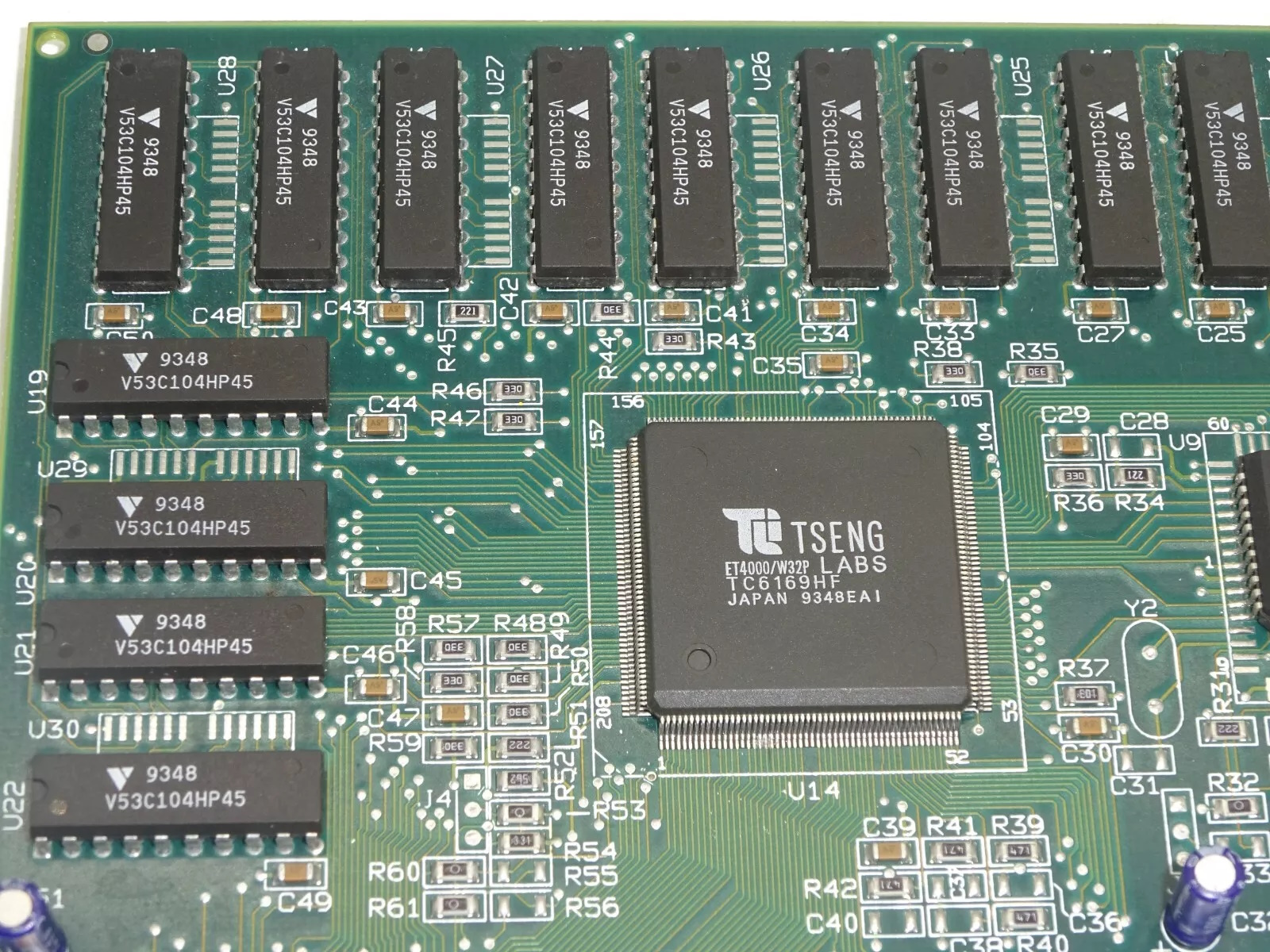

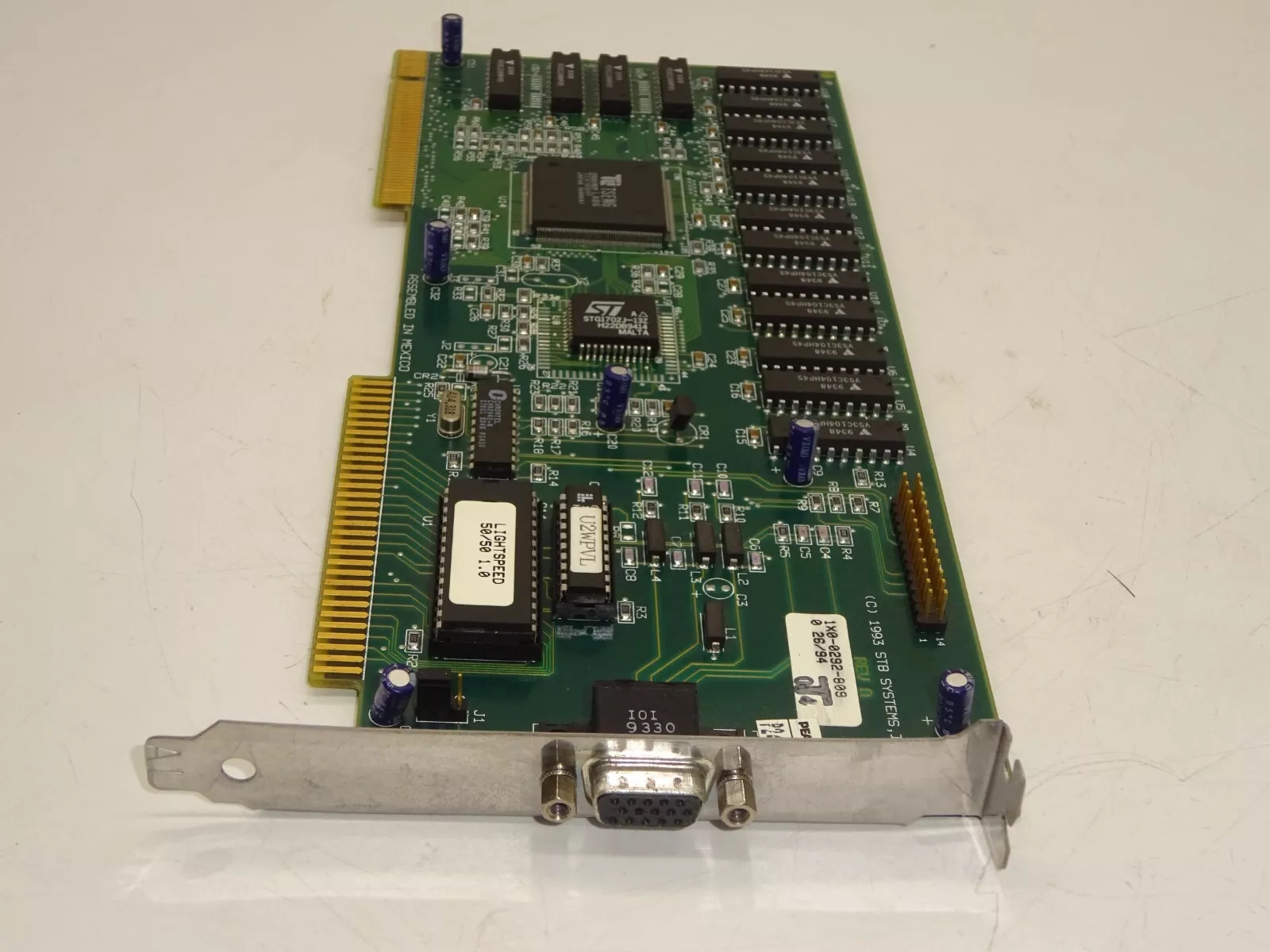

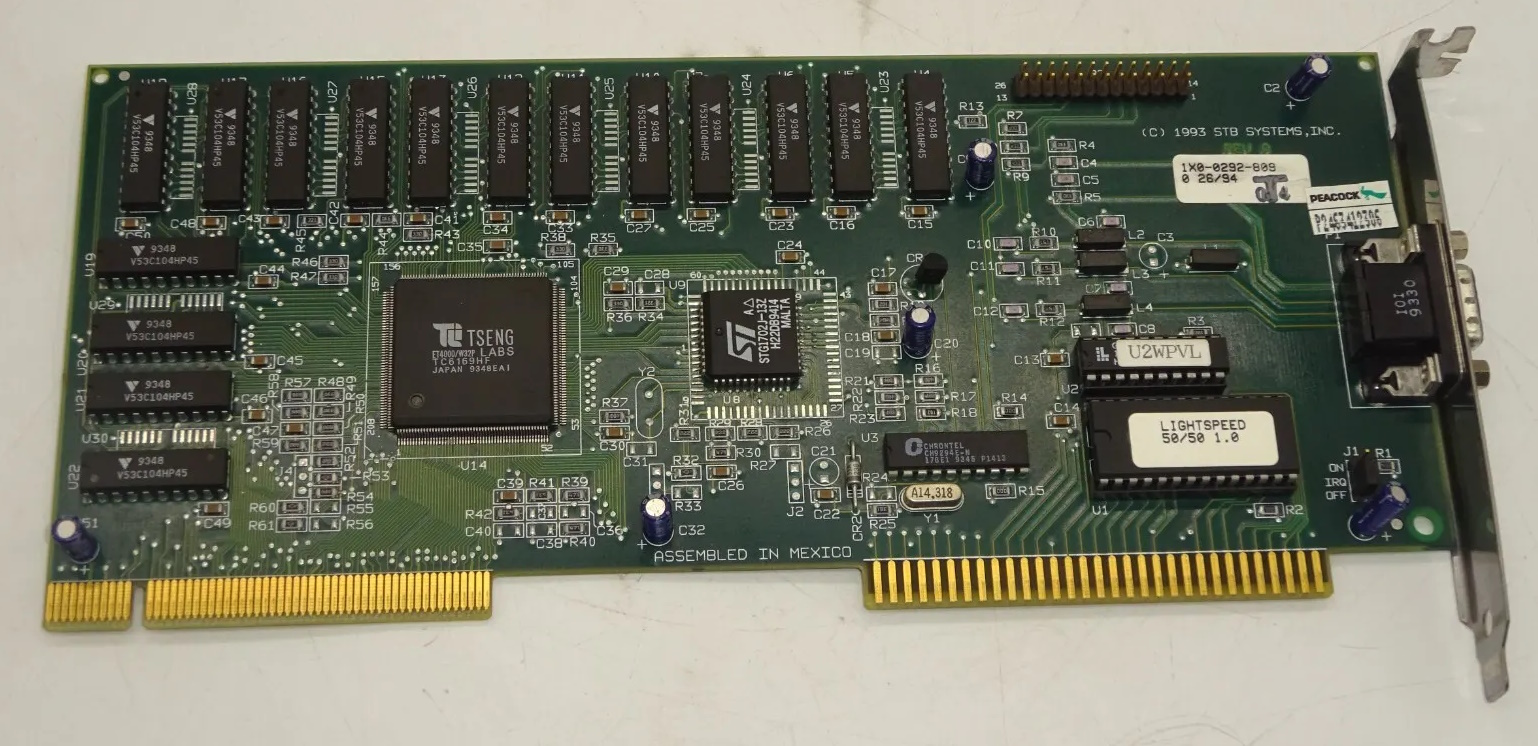

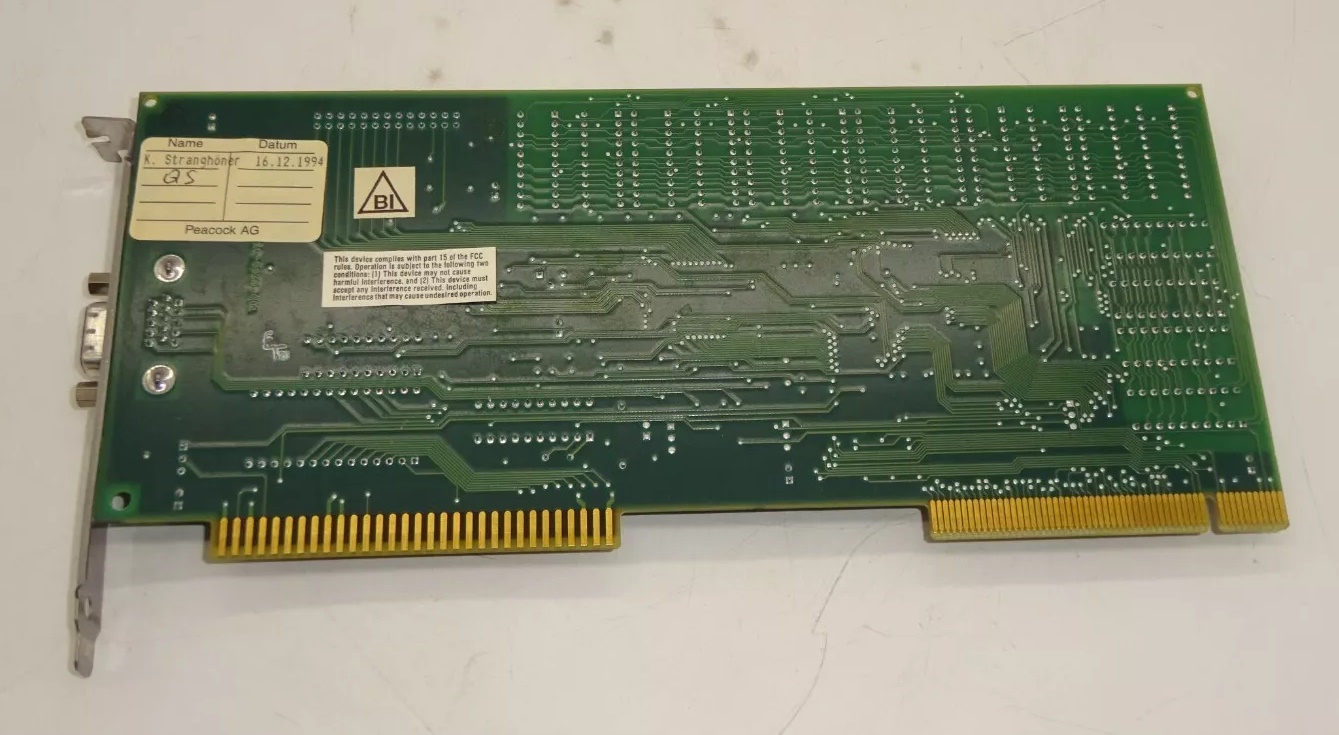

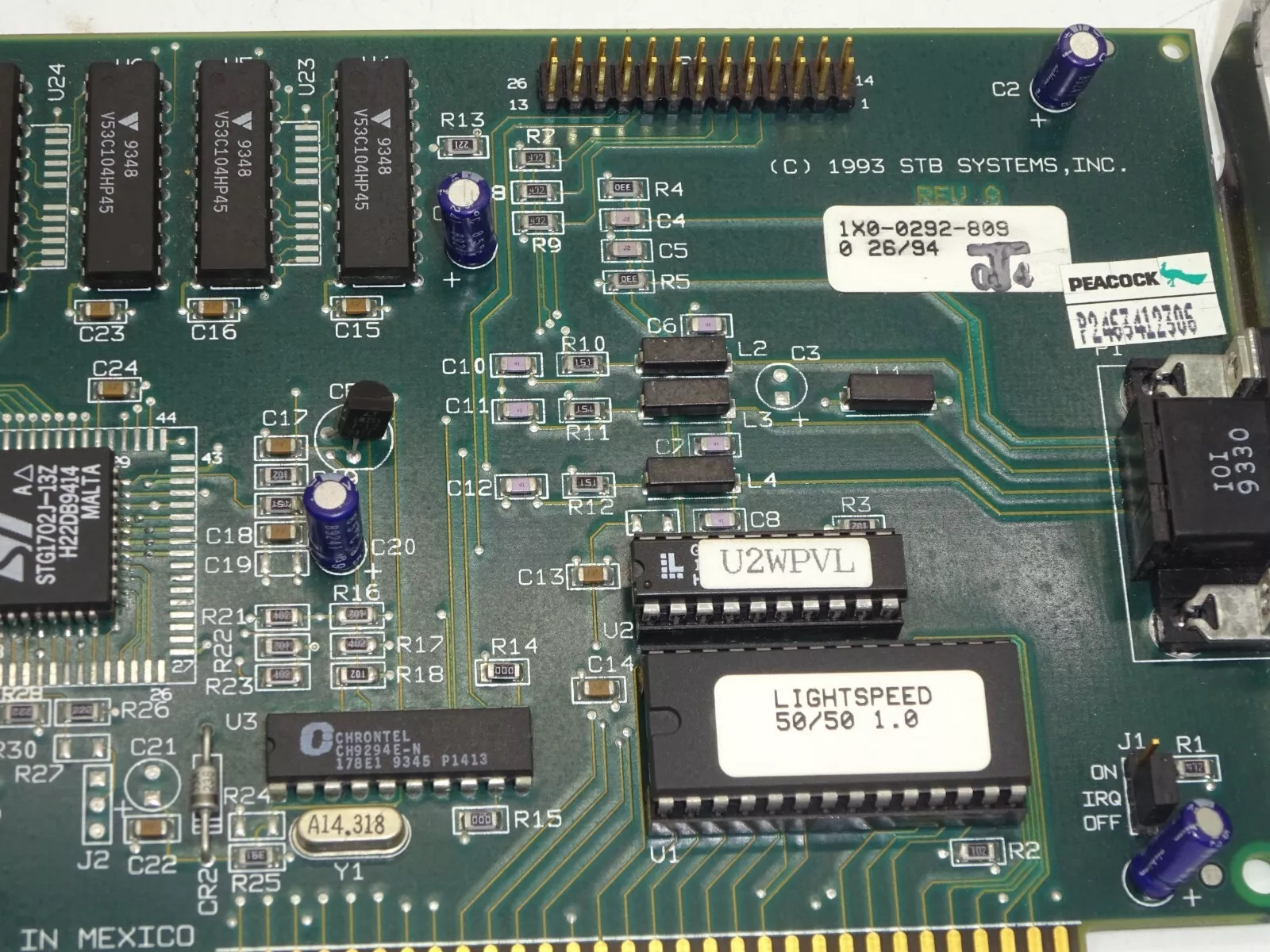

STB Systems Lightspeed VL

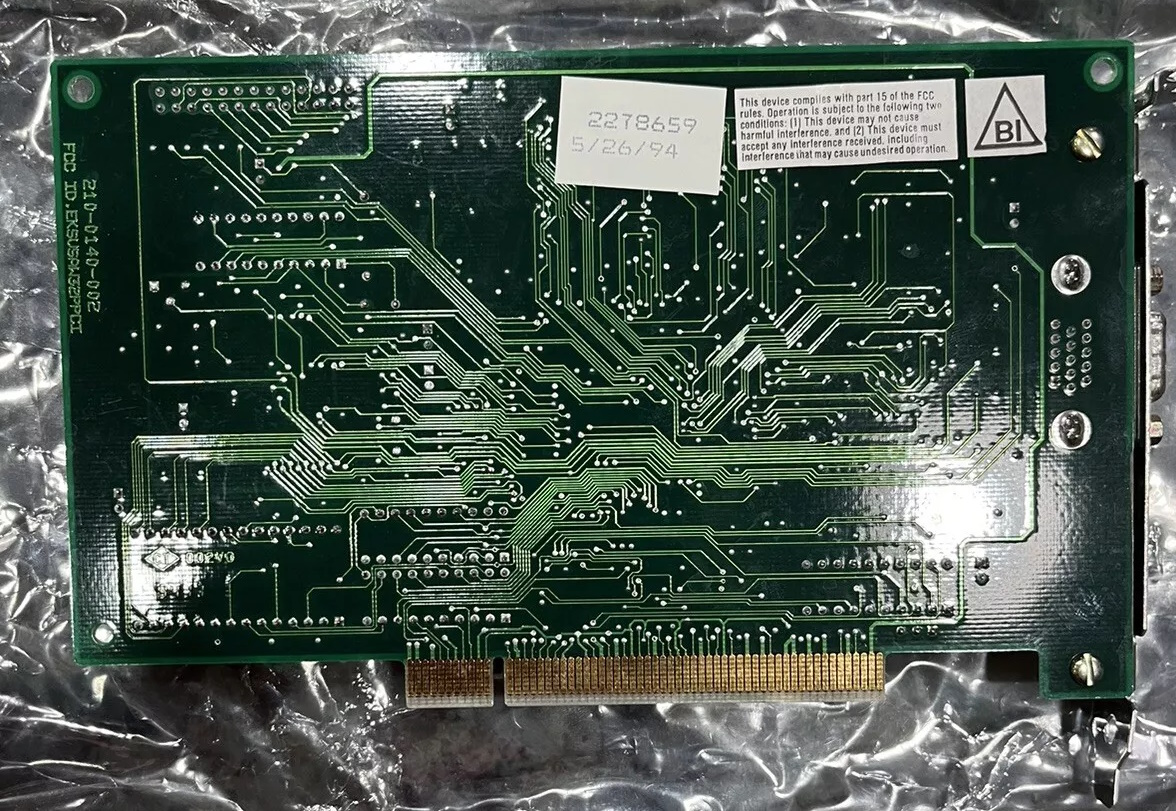

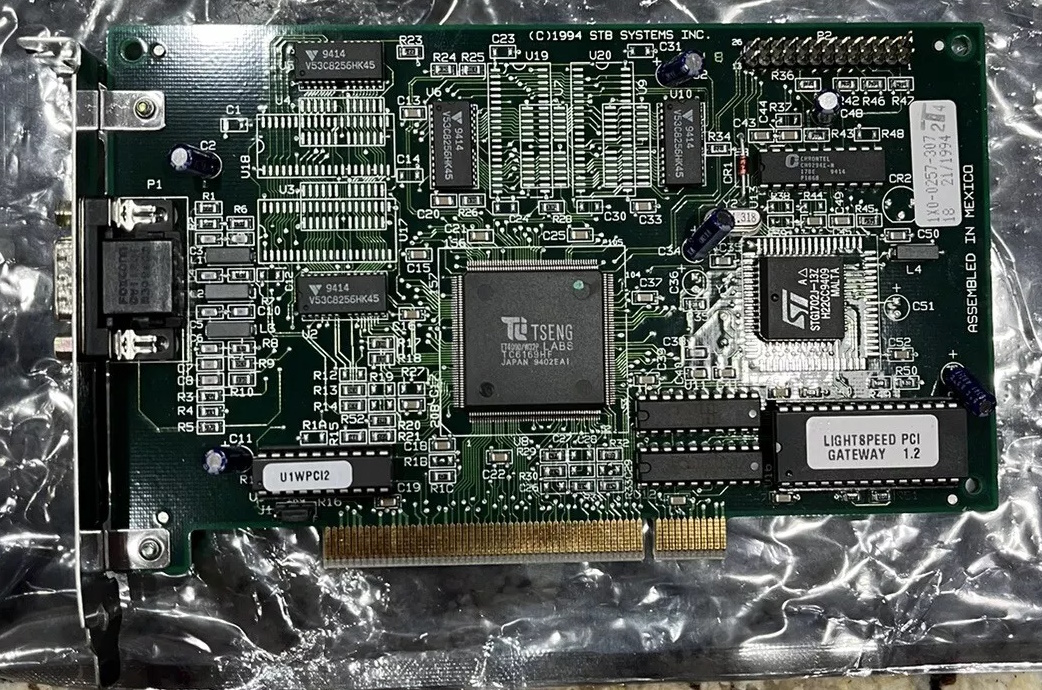

STB Systems Lightspeed (PCI)
