ATI VGA Wonder 1024D / 1024D XL Plus

The VGA Wonder 1024D was a cost-reduced version of several VGA Wonder models, sold alongside other cost-reduced models like the XL24. They typically lack the bus mouse connector and/or the digital TTL output.

	Released	November 1990
	Bus	ISA 16-bit
	Chipset	ATi 28800-5 (1990) or ATi 28800-6 (1992)
	Standards	Hercules, CGA, EGA, VGA, and SVGA
	Memory	512 KB (1024D) or 1 MB (1024D XL Plus)
	Ports	15-pin DSUB (RGB analogue) VESA Feature connector
	Part #	109P014400, 1021440005
	FCC ID	EXMBVGA1M
	Price	At launch: $189, Feb 1992: $129
	See Also	VGA Wonder+, VGA Edge series, VGA Basic-16

It is based around either the ATi 28800-5 (Revision 5) chip from 1990 (also used on late VGA Wonder+ cards), or the later ATi 28800-6 (Rev.6) chip from early 1992 which was also used on the VGA Wonder XL24. These were ATi's second-generation Wonder graphics chip after the 188xx series used on the original VGA Wonder and VGA Wonder 16 cards.

The cards come with the capability of 1 MB onboard via two banks of 512 KB DRAM chips. Factory 512 KB cards can be upgraded by simply addding four more DRAMs (80ns was typical for these cards).

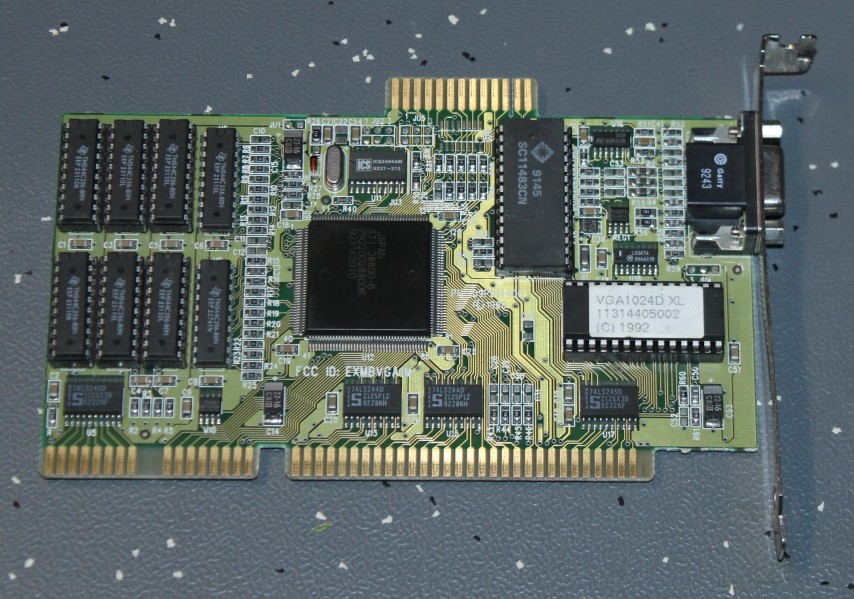

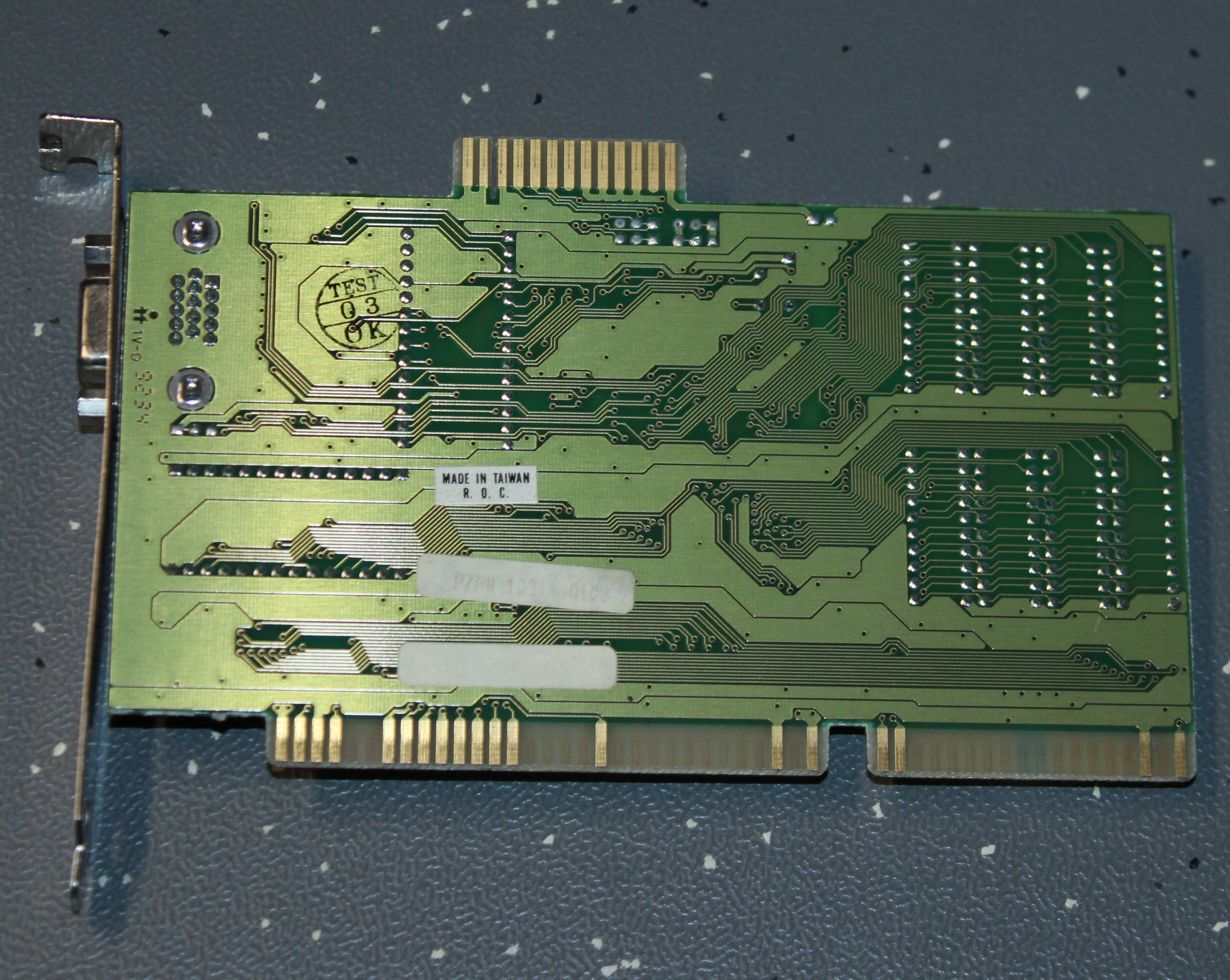

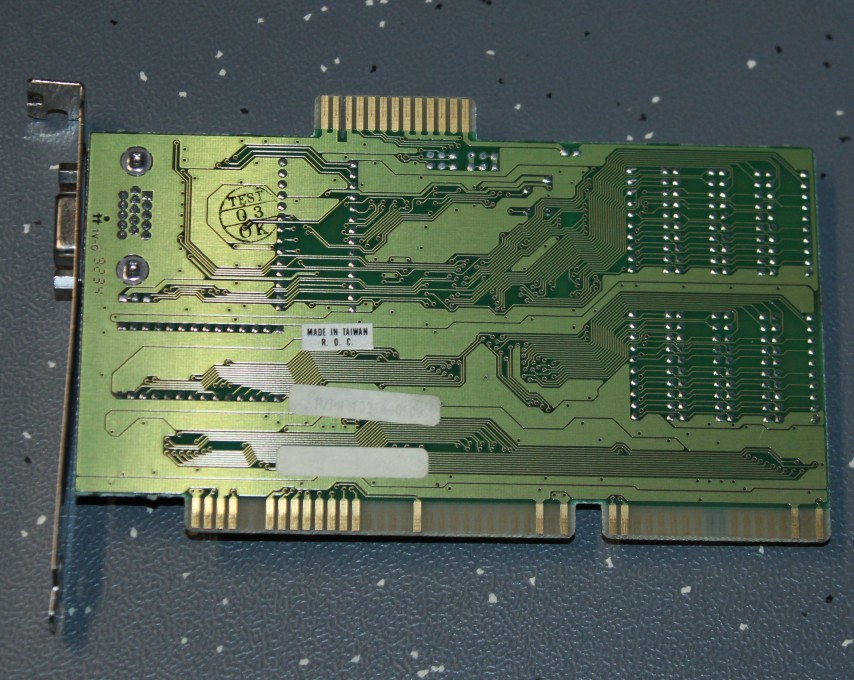

ATi released a VGA Wonder 1024D XL Plus, which came out of the box with the full 1 MB of video memory. In all other respects it was identical to the 1024D.

Board Revisions

No details are known on different revision of this card.

Competition

No details are known on the competition this card competed against.

In the Media

Setting it Up

No configuration is required for the VGA 1024D or 1024D XL24, with its auto-switching capability. The card came with a utility to force the display mode if necessary.
