Profimedia Gold 16/96

The SoundSystem Gold 16/96 was released in mid-1996. Based on the ES1868F from ESS Technology, it was an excellent Sound Blaster Pro compatible.

	Released	1996
	Bus	ISA 16-bit
	FM Synth	(embedded in ESS chip)
	Audio Codec	ESS AudioDrive ES1868F
	Standards	Ad Lib, Sound Blaster, Sound Blaster Pro, ESFM, Windows Sound System, Roland MPU-401
	Ports	Speaker-Out, Line-Out, Line-In, Mic-In Game/MIDI port
	CD-ROM	IDE
	Wavetable	WaveBlaster-compatible header
	Plug & Play	Yes
	FCC ID(s)
	See Also

Terratec's website from 1996 had this to say: "The best-selling TerraTec sound card is now available in a new version with even greater ease of use thanks to complete software configuration (Plug&Play) and significantly improved audio properties: SoundSystem GOLD 16/96! Due to its high compatibility with common operating systems and audio applications (games, music, speech recognition), extremely easy handling and flexible expansion options, the new GOLD 16/96 is particularly suitable for beginners in the PC audio world. Important: Fun without stress - drivers for Windows NT and Warp are included!".

The Gold 16/96 was able to perform recording and playback from 4 kHz up to 44.1 kHz at 8- or 16-bit quality, with simultaneous enhanced full-duplex recording in mono with its dual DMAs. It has a 3D surround mode called VSpace^TM which simulates all-around sound using two speakers.

For expansion you could fit a wavetable card on the WaveBlaster(TM)-compatible header, and there is an IDE header for connection to a CD-ROM drive. Terratec produced their own wavetable card called the Terratec WaveSystem SCW001.

The MIDI interface is compatible with both Creative Labs' Sound Blaster MIDI and MPU-401.

The onboard stereo amplifier output 4 watts per channel, and the card was supplied with a set of passive stereo speakers along with two bundled software tools:

• Steinberg MusicStation - 64-track MIDI sequencer with note printing and professional automatic accompaniment (your own styles can be programmed).
• BestService 'CircleElements SE' - With 100s of loops (DigitalAudio) with which even "non-musicians" can quickly mix complete, professional-sounding pieces



Board Revisions

Just one board revision is known for the 16/96: 1.0.



Competition



In the Media



Setting it Up

Downloads

User Manual (missing) Get in touch if you can provide this missing item!	Quick Install Guide (missing) Get in touch if you can provide this missing item!	Original Driver/Utility CD (missing) Get in touch if you can provide this missing item!
DOS Drivers Version ?	Windows 3.x Drivers Version ?	NT 4.0 Drivers Version ?
Windows 9x Drivers Version ?	OS/2 Drivers Version ?	Enable CD-ROM Interface Utility Version ? This utility activates the IDE CD-ROM header.
Applications 1 Version ? Includes AudioRack 32	Applications 2 Version ?



More Pictures

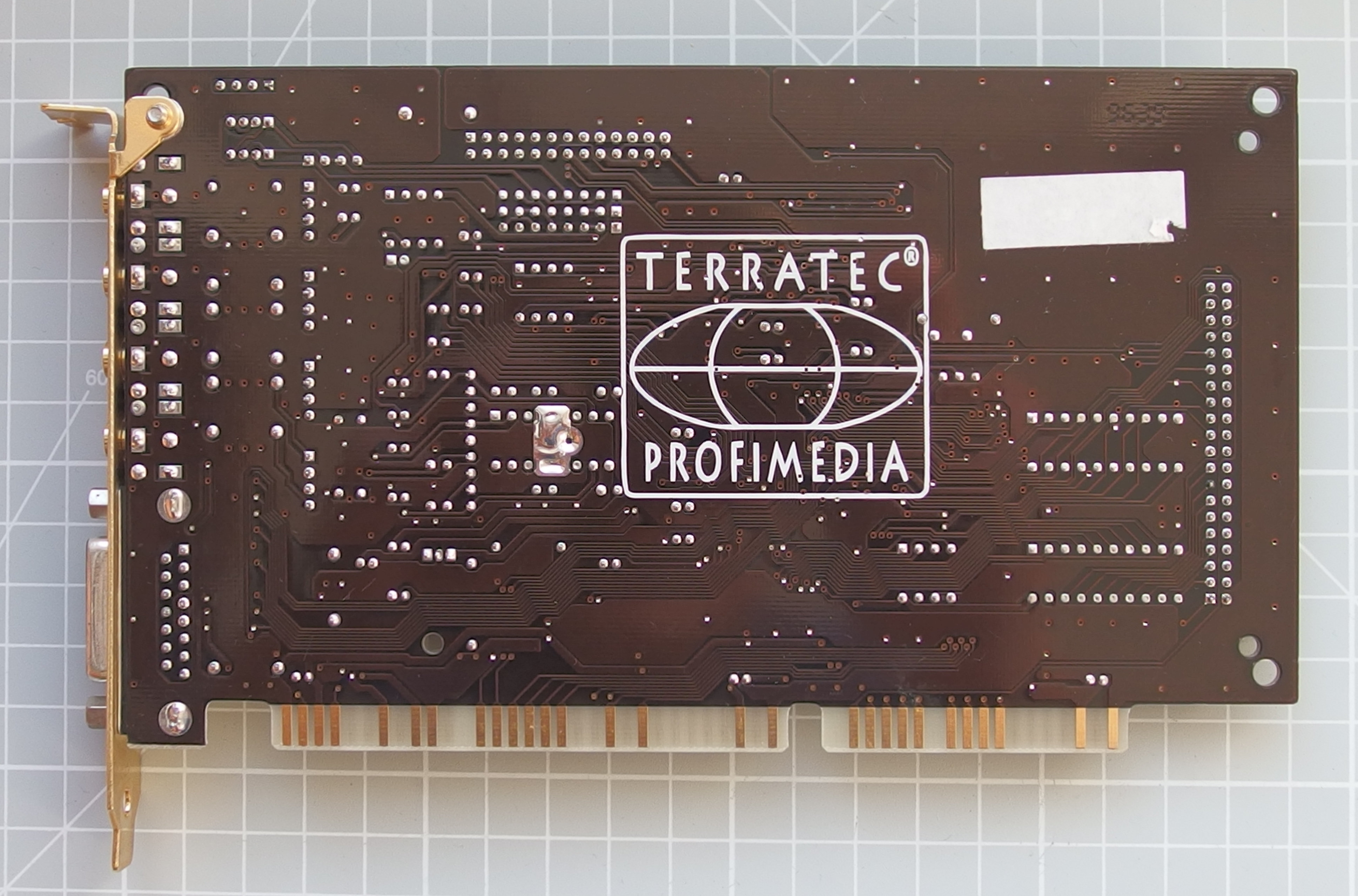

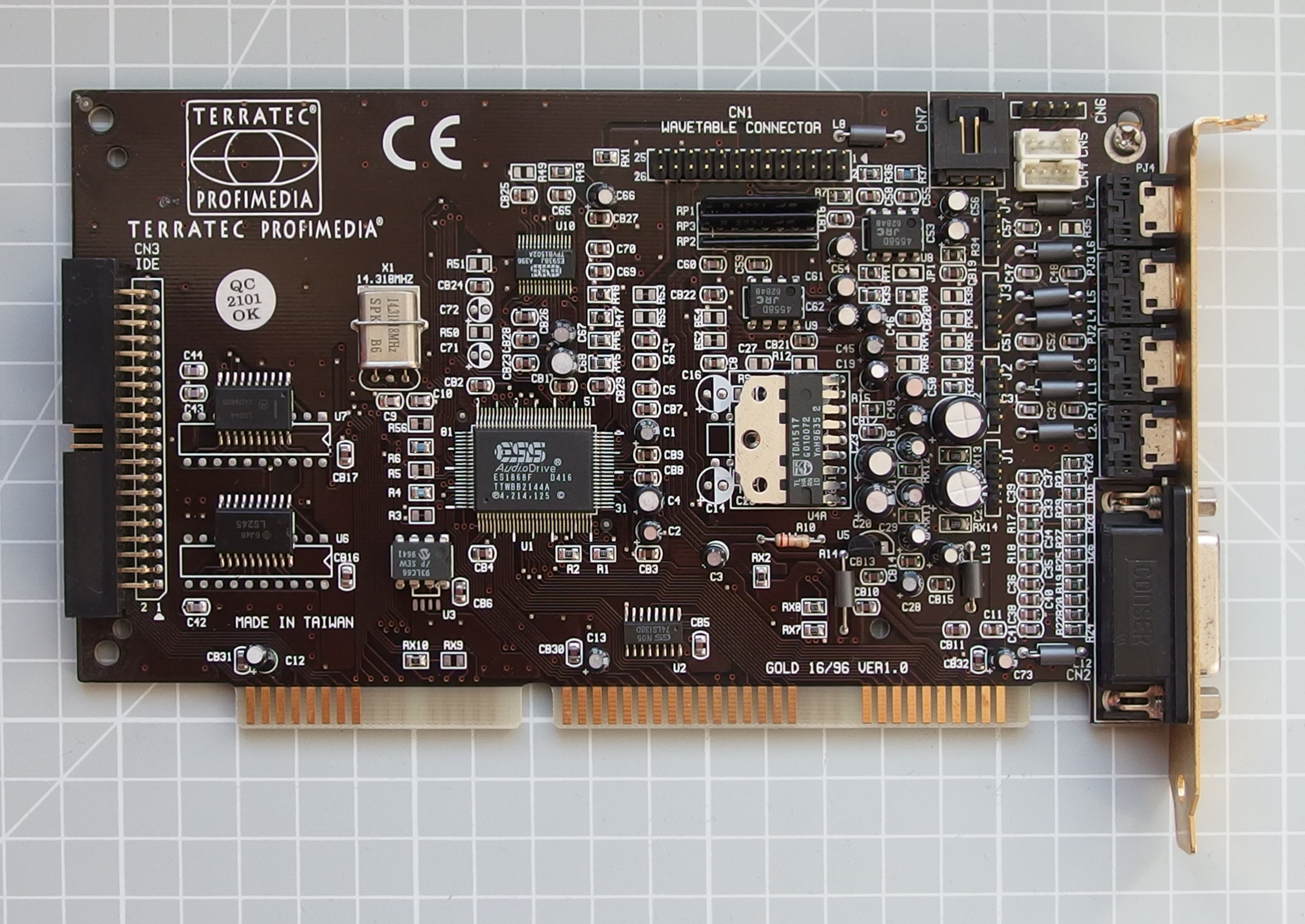

targeted's Terratec Gold 16/96

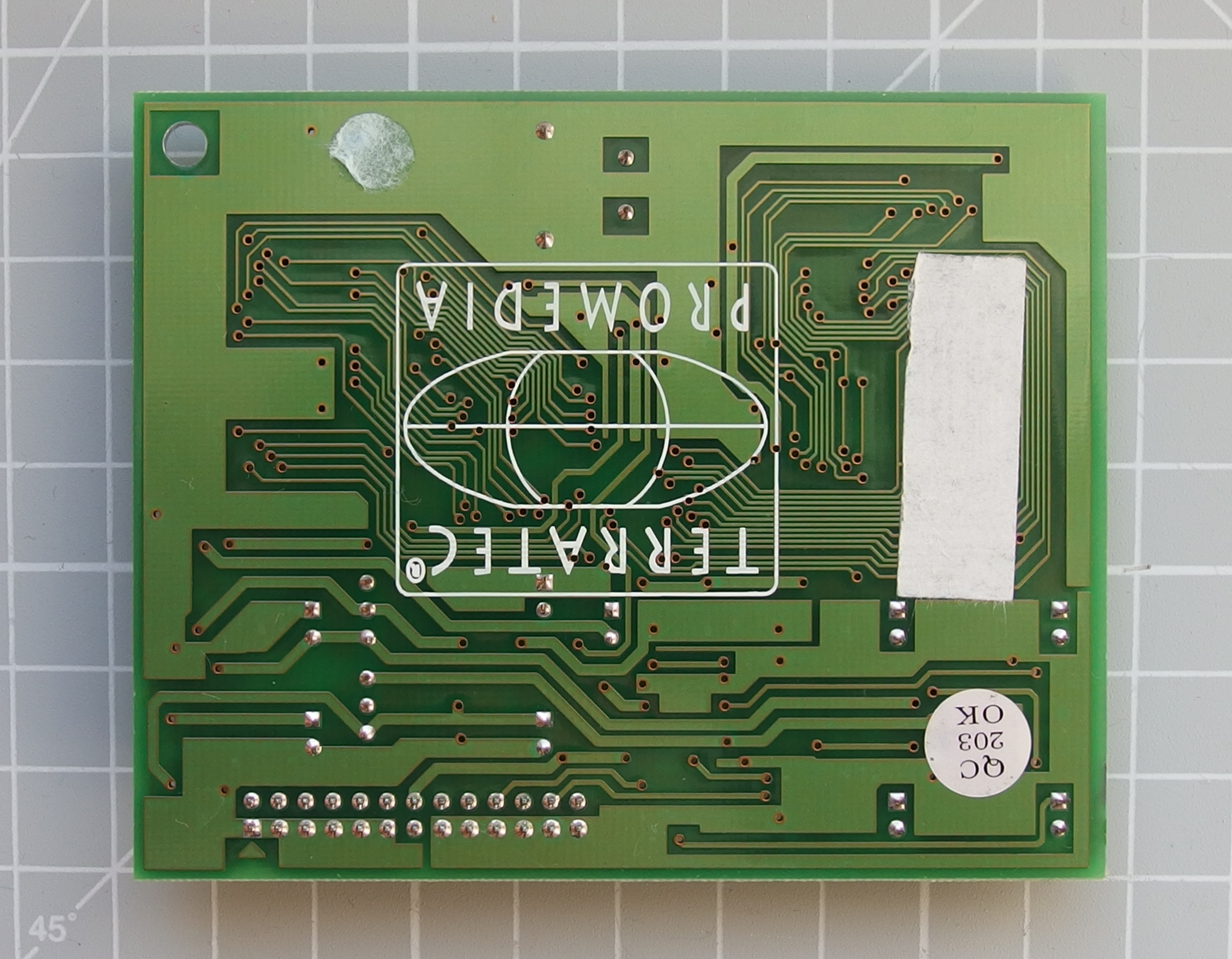

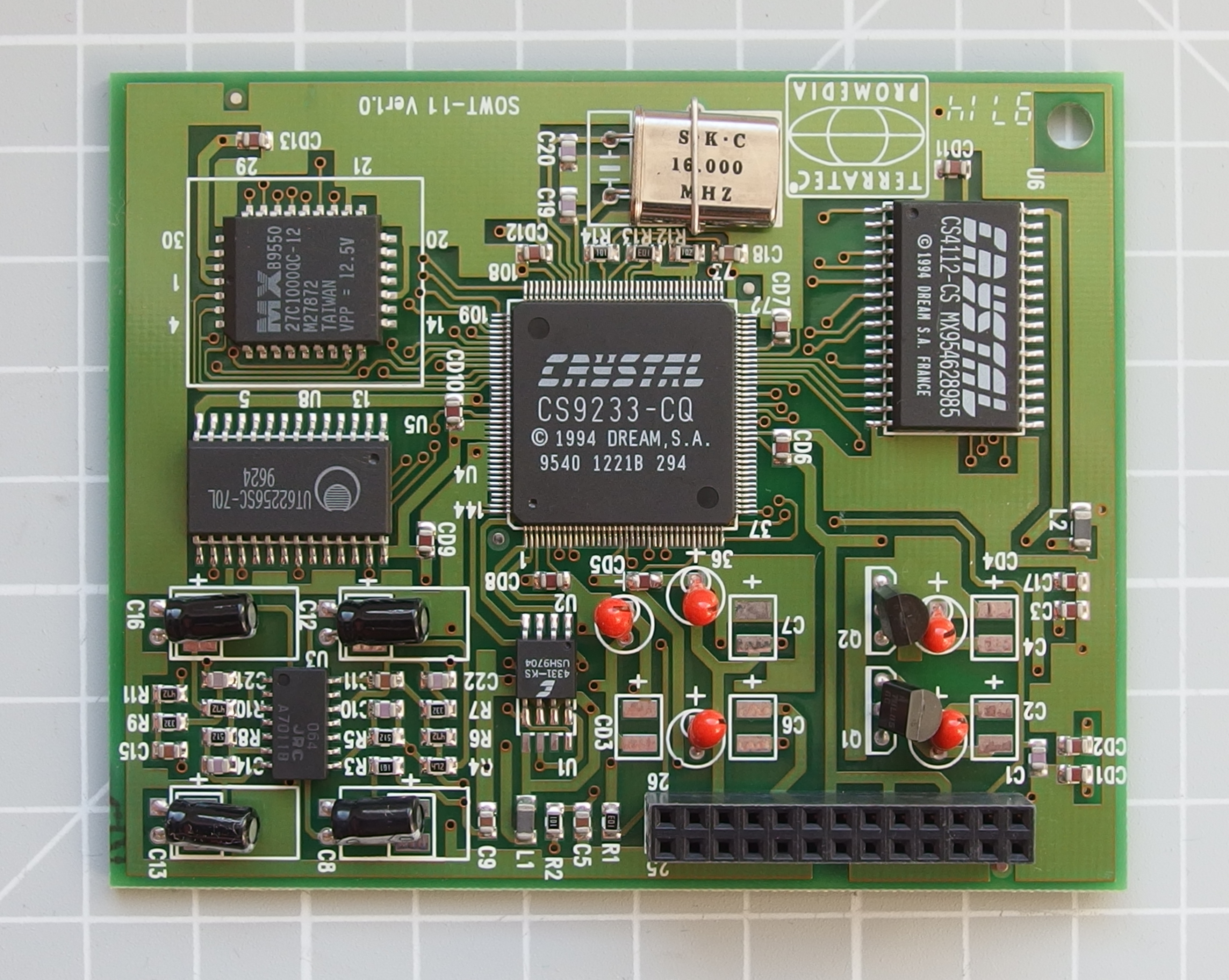

targeted's Terratec SOWT-11 Wavetable Daughterboard based on the Crystal CS9233

Another Terratec Gold 16/96
