Maestro 32/96
The Maestro 32/96 was released in late 1996. It was based on the Crystal CS4232 audio codec as well as a Dream SAM9233 DSP for onboard wavetable audio.
|
Released | 1996 |
| Bus | ISA 16-bit | |
| FM Synth | (embedded in CS4232) | |
| Audio Codec | Crystal CS4232 | |
| Standards | Ad Lib, Sound Blaster, Sound Blaster Pro, Windows Sound System 2.0, General MIDI, Roland MPU-401 | |
| Ports | Speaker-Out, Line-Out, Line-In, Mic-In Game/MIDI port |
|
| CD-ROM | IDE | |
| Wavetable | Dream SAM9233 and SAM8905 effects processor, plus wavetable header | |
| Plug & Play | Yes | |
| FCC ID(s) | ||
| See Also |
Compatible with Ad Lib, Sound Blaster, Sound Blaster Pro, Windows Sound System 2.0, GM/GS General MIDI via the onboard wavetable, wavetable header for a daughterboard, or Game/MIDI MPU-401 (UART) port.
The card comes with a built-in wavetable via its Dream SAM9233 chip, but in addition to this, the 32/96 also came with the Dream SAM8905-1 effects processor. The SAM9233 uses a variant of Roland Sound Canvas sound fonts. The CS4232 provides the card with its Windows Sound System 2.0 compatibility.
The FM synthesis is, sadly, only emulated within the Dream SAM9233 chip which has Crystal's own flavour of OPL3-compatible FM synthesis. You can read more about this in my Orchid NuSound 32 PnP review, which shares the same chips (except no 8905 effects processor).
Use the non-amplified Line Out for better Signal-to-Noise.
Board Revisions
Competition
In the Media
Setting it Up
Downloads
User Manual
Get in touch if you can provide this missing item! |
Quick Install Guide
Get in touch if you can provide this missing item! |
Original Driver/Utility CD
Get in touch if you can provide this missing item! |
|
Windows 3.x Drivers
|
NT 4.0 Drivers
|
Windows 9x Drivers
|
OS/2 Drivers
|
Enable CD-ROM Interface Utility |
Updated SNDINIT File
Includes AudioRack 32 |
|
More Pictures

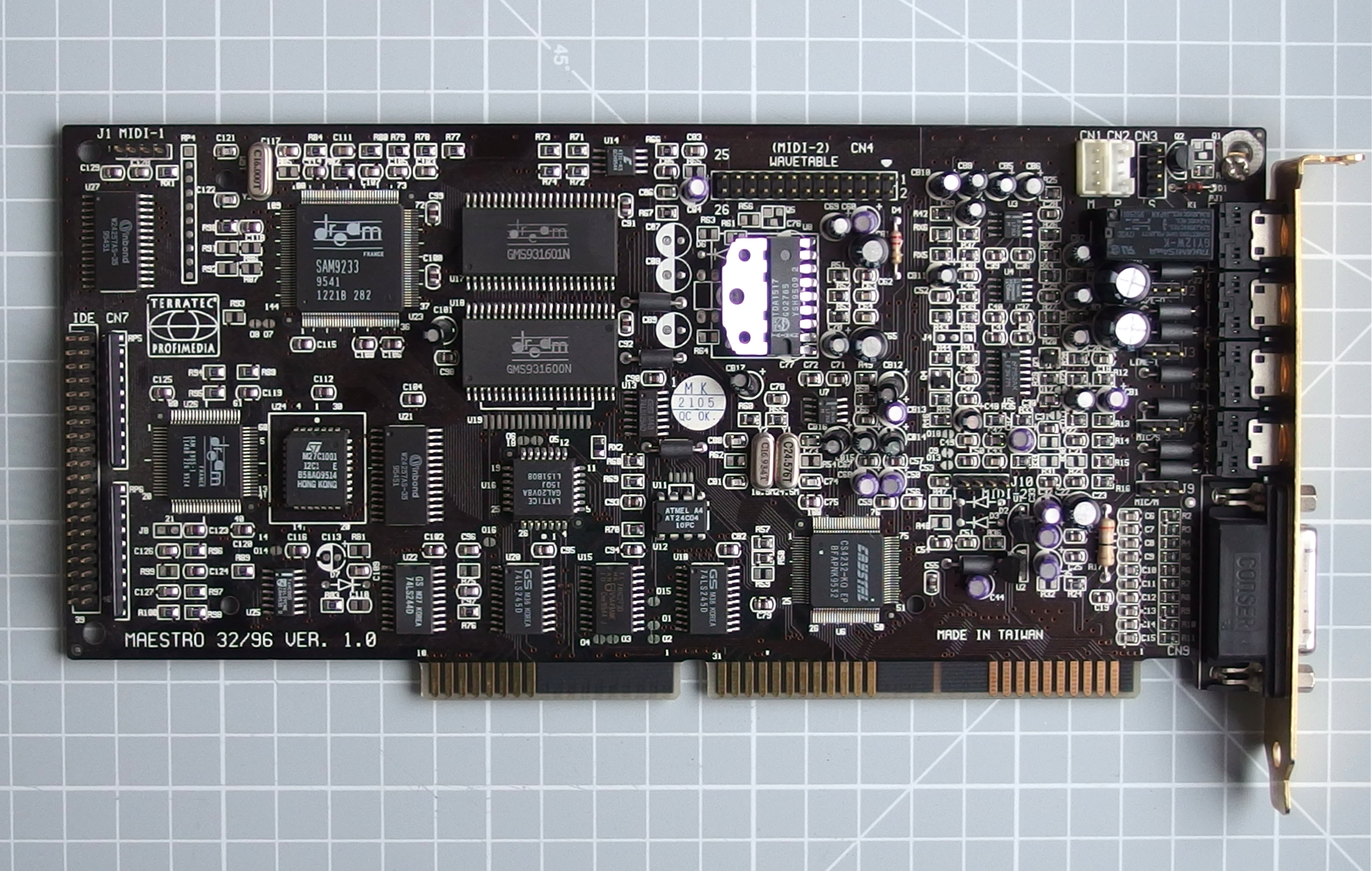

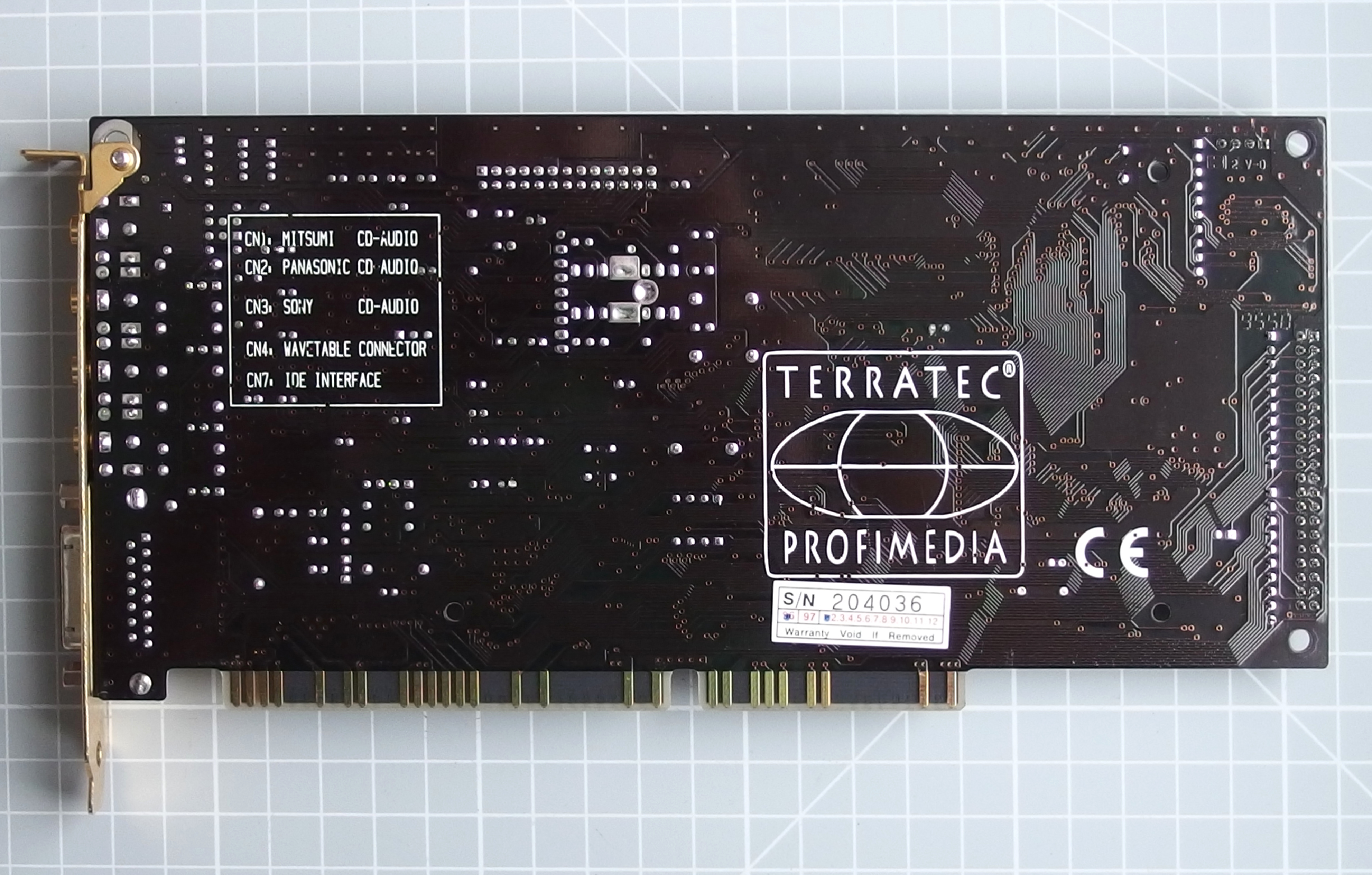

A Maestro 32/96 courtesy of DOS Days' contributor, targeted
