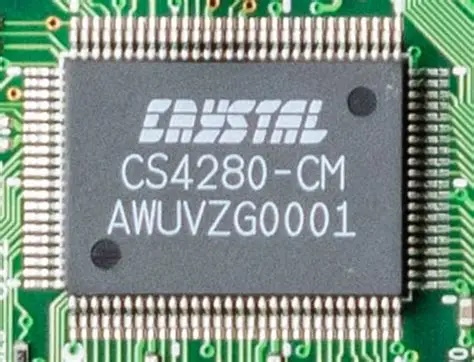

Crystal CS-4280 / CS-4281
The CS-4280 was Crystal's first PCI audio controller for PC sound cards, introduced in 1998.
|
Released | 1998 (CS4280), 1999 (CS4281) |
| Bus | PCI | |
| FM Synth | (Emulated) | |
| Sample Range | 4 - 50 kHz | |
| Packages | CS4280: 100-pin MQFP (-CM) or 128-pin TQFP (-CQ) CS4281: 100-pin MQFP (-CM) or 100-pin TQFP (-CQ) |
|
| Standards | AC'97, PC'98, PC'99 (CS4281 only), Sound Blaster Pro (via PC/PCI, DDMA or CCLS) | |
| Plug & Play | Yes | |
| See Also | CS4297 |
The CS4280 and CS4281 are PCI audio chips with legacy DOS compatibility via both PC/PCI, Distributed DMA and what Crystal called "CrystalClear Legacy Support" (CCLS). They have an integrated FM synthesizer, hardware volume control, an MPU-401 interface, zoom video port and game port. They both require an external codec.
The CS4280 is pin-compatible with the earlier CS4614, CS4622/CS4624, and is usually coupled with the Crystal CS4297 audio codec.
CS4280 is found on the JoyTech Twister 3D sound card as well as the Pine Technology PT2620.
Revisions
Competition
In the Media
Setting it Up
Downloads
CS4280 Datasheet |
CS4281 Datasheet |
