STB Nitro 64 / Nitro 64 Video
The Nitro64 was a budget 64-bit graphics accelerator that launched in 1995. It came with either 1 MB or 2 MB of EDO DRAM.
 |
Released | 1995 |
| Bus | ISA, VESA Local Bus or PCI | |
| Chipset | Cirrus Logic CL-GD5434 / CL-GD5446 | |
| Standards | Hercules, CGA, EGA, VGA | |
| Memory | 1 MB or 2 MB EDO DRAM | |
| RAMDAC | - | |
| Ports | 15-pin DSUB (analogue video out) | |
| Part # | 1X0-0337-009 (ISA), 1X0-0406-307 (PCI) | |
| FCC ID | EKSUSA5434 (ISA), EKSUSA5434PCI (PCI) | |
| Price | - | |
| See Also | Horizon 64, Horizon 64 Video, Nitro 3D, Nitro DVD |
It supported resolutions up to 1024 x 768 in 65K colours on the 2 MB card, and refresh rates up to 75 Hz. The Nitro 64 used the Cirrus Logic CL-GD5434 graphics accelerator chipset. The Nitro 64 Video used the slightly later CL-GD5446.
1 MB variants could be upgraded to 2 MB via the addition of a 1 MB memory module daughterboard.
The Nitro 64 came bundled with Sierra's Earthsiege 2 game.
STB Systems sold the Nitro 64 Video to the OEM market, including Compaq and Dell.
Refresh Rates (Hz):
Colors/ Resolution |
640x480 |
800x600 |
1024x768 |
1280x1024 |
16 |
60,75 |
56,60,72,75 |
44i,60,70,75 |
44i |
256 |
60,75 |
56,60,72,75 |
44i,60,70,75 |
44i,60 |
65K |
60,75 |
56,60,72,75 |
44i,60,70,75 |
- |
16.7M |
60,75 |
56,60 |
- |
- |
Note: Display Modes in bold require 2MB of DRAM.
i=interlaced
Board Revisions
I don't have any information on board revisions for the Nitro 64 or Nitro 64 Video cards.
Competition
In the Media
Setting it Up
Downloads
For Windows NT drivers use the embedded Cirrus Logic 5434 drivers in the operating system.
Operation Manual Get in touch if you can provide this missing item! |
Original Utility Disk Nitro 64 PCI Utlities Drivers release 1.4 |
Original Utility Disk Nitro VL Utility/Drivers release 1.0 |
ROM BIOS v1.1 Get in touch if you can provide this missing item! |
Windows 3.1 Drivers Nitro 64 STB Vision Windows drivers release 2.10d |
Windows 95 Drivers Nitro 64 STB Vision 95 drivers release 1.20i |
Windows 3.1 Drivers International Vision2 for Nitro 64 Video PCI Windows 3.x Drivers release 2.11V |
Windows 95 Drivers International Vision 95 for Nitro 64 Video PCI Windows 95 Drivers release 1.21G |
More Pictures

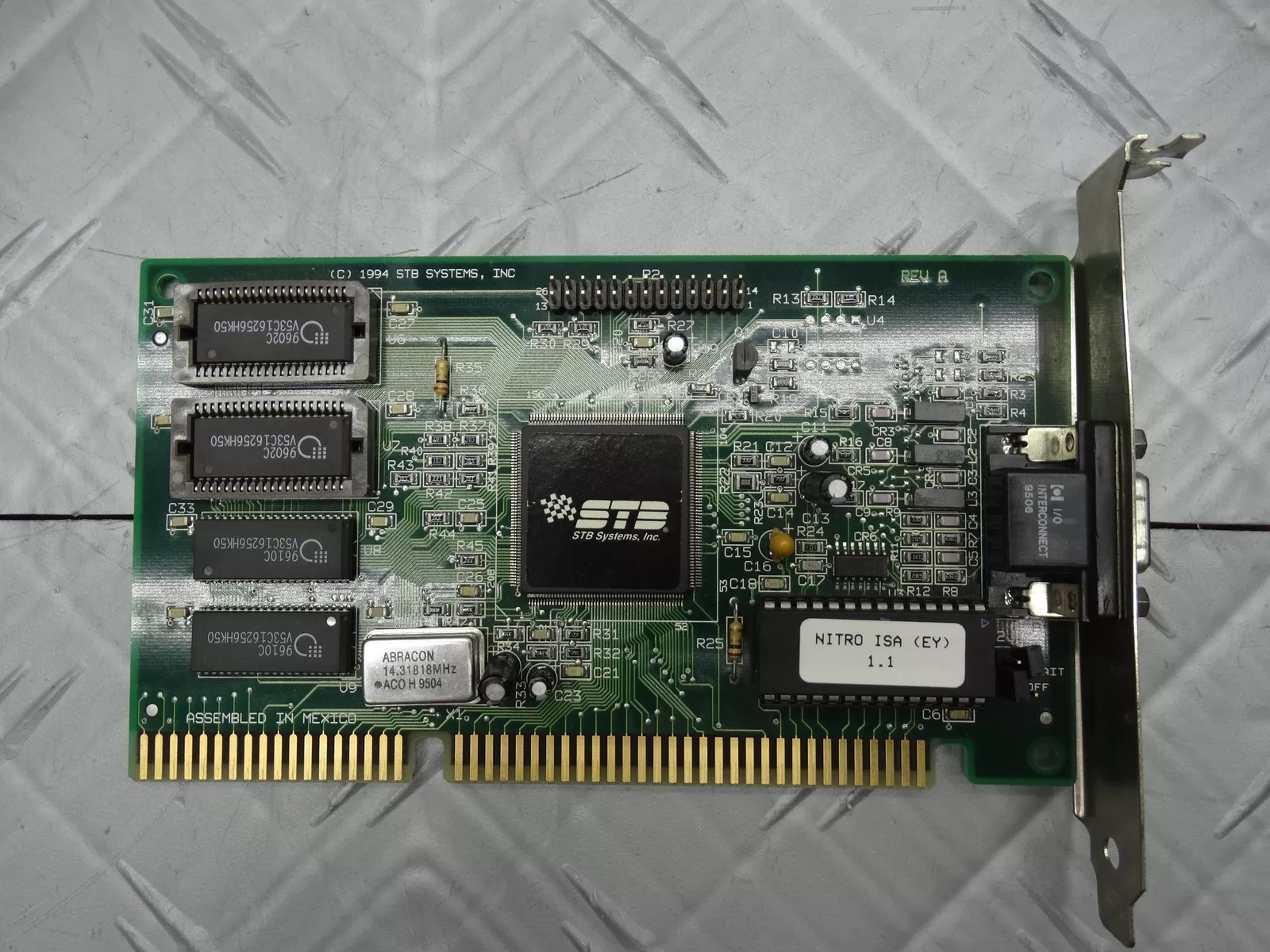

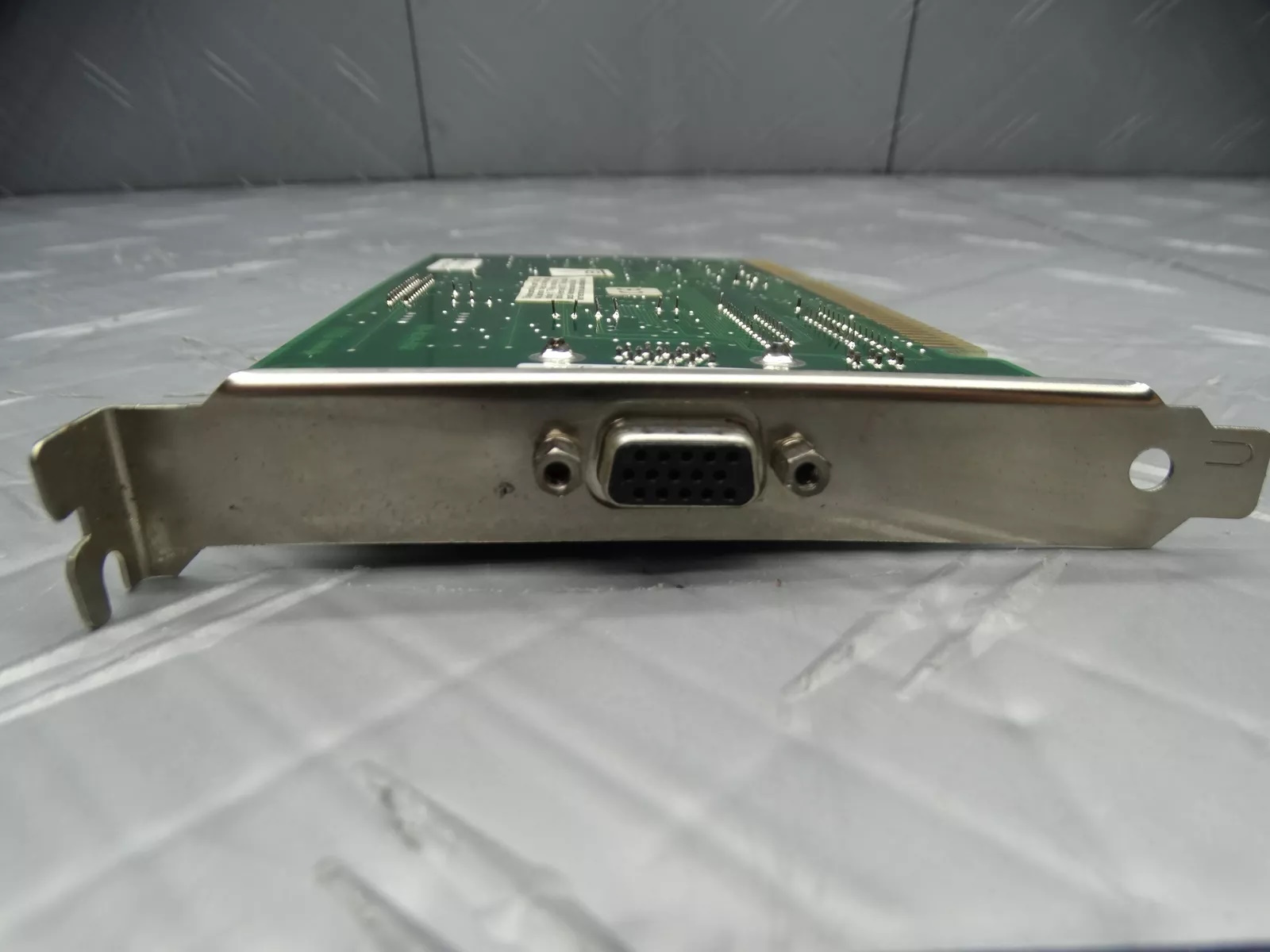

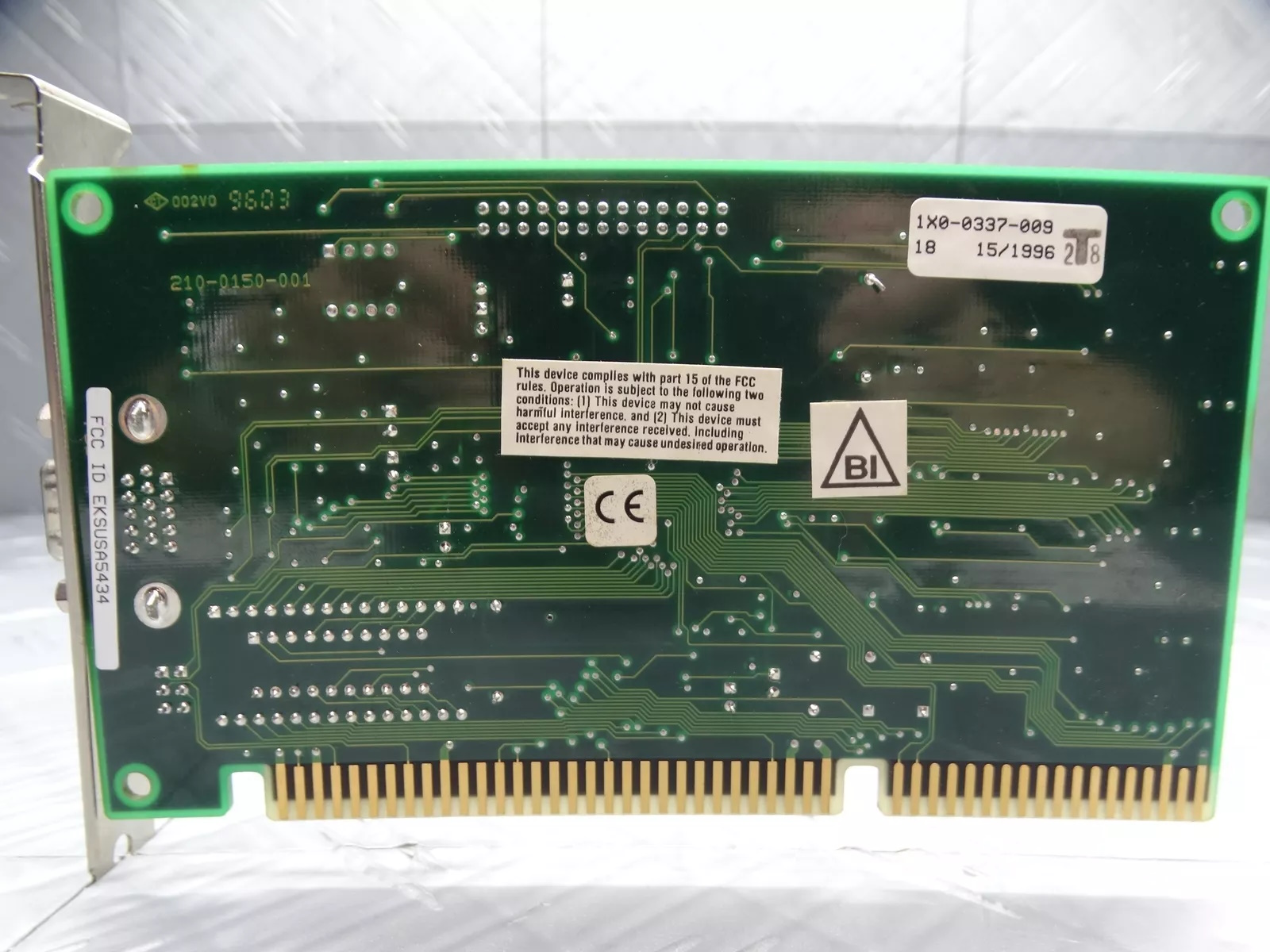

An ISA version of the CL-GD5434-based STB Nitro

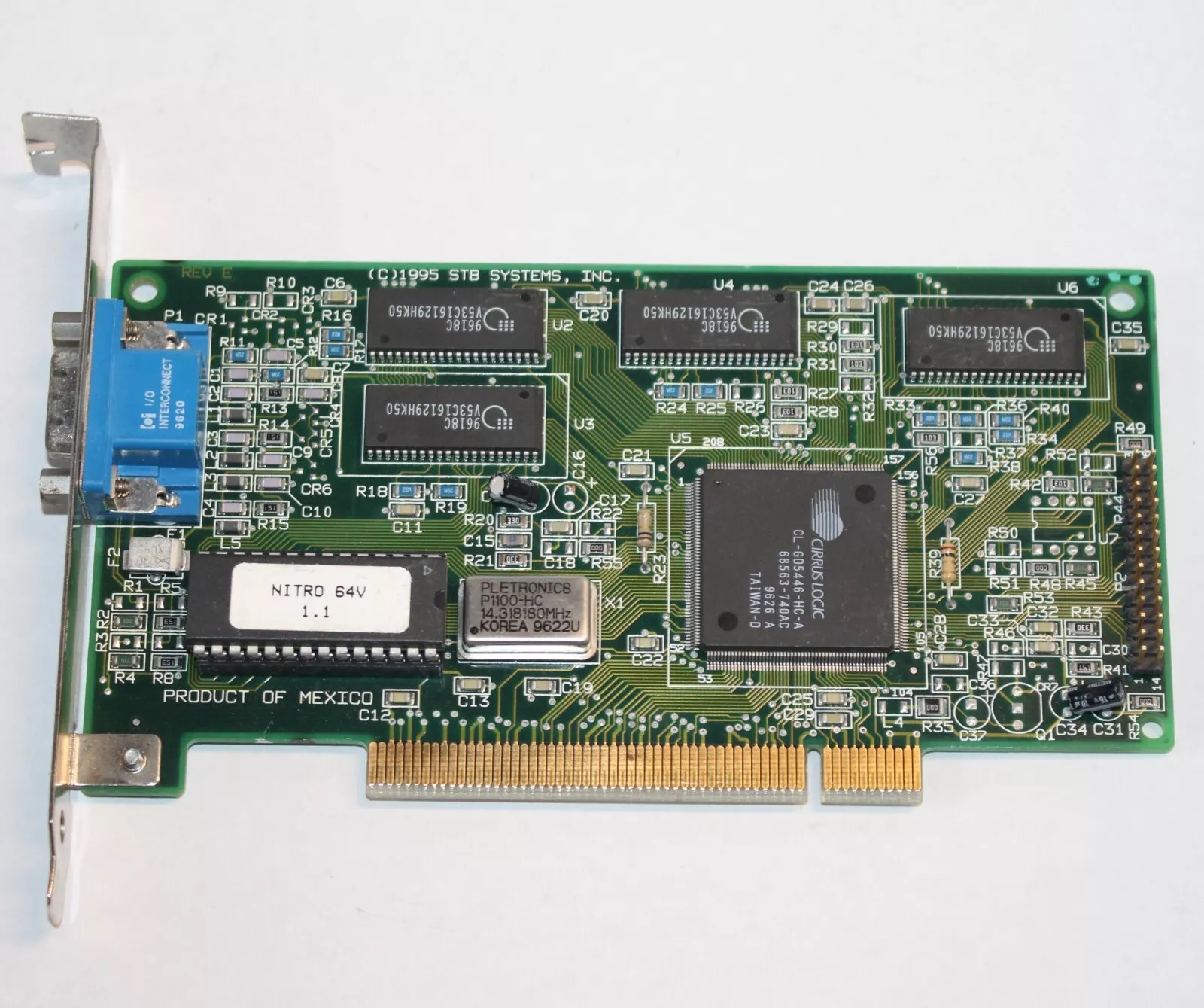

The CL-GD5446-based STB Nitro 64 Video

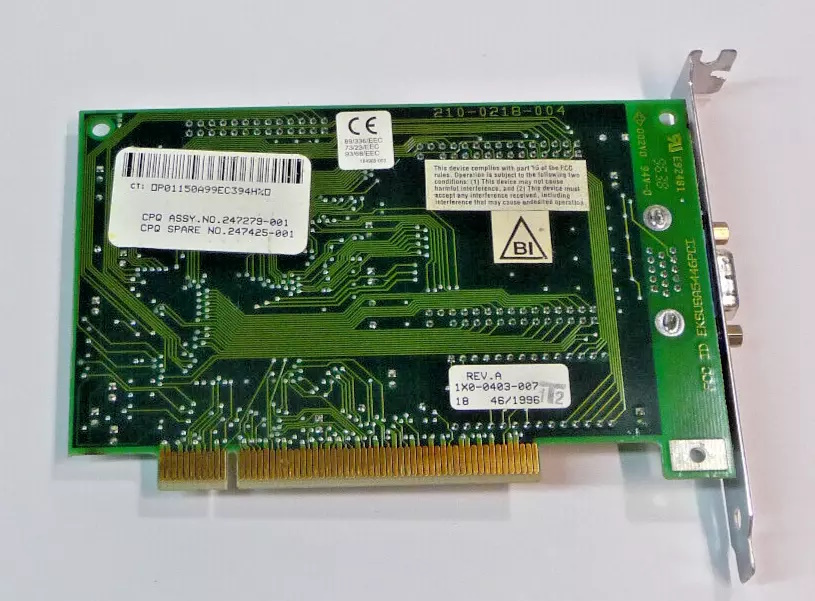

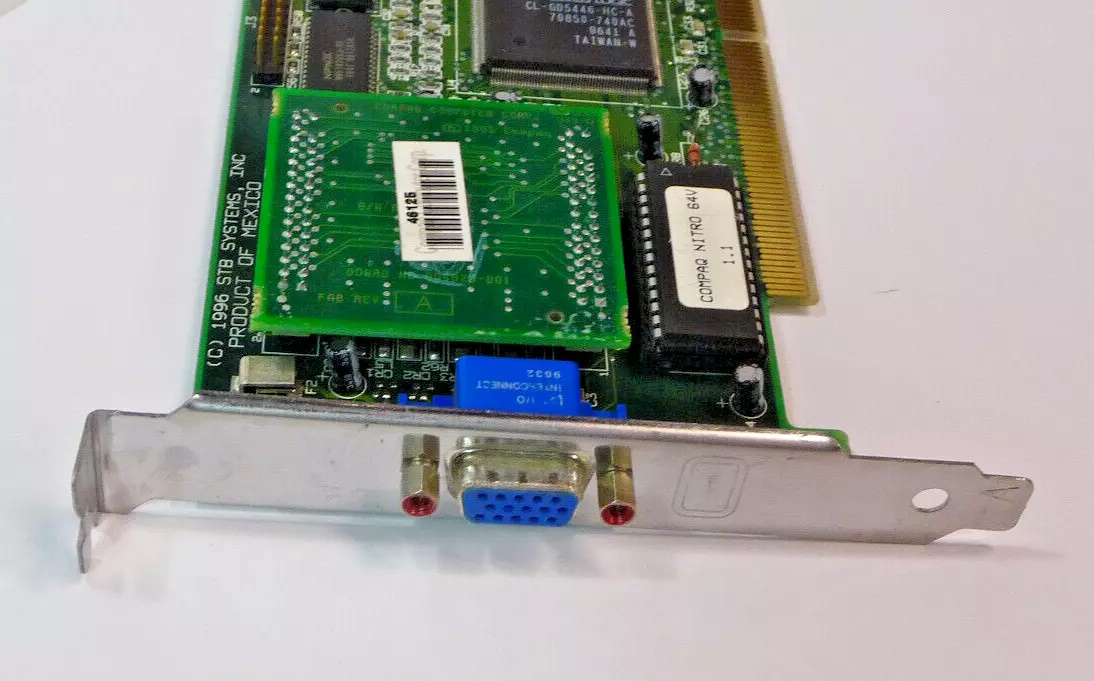

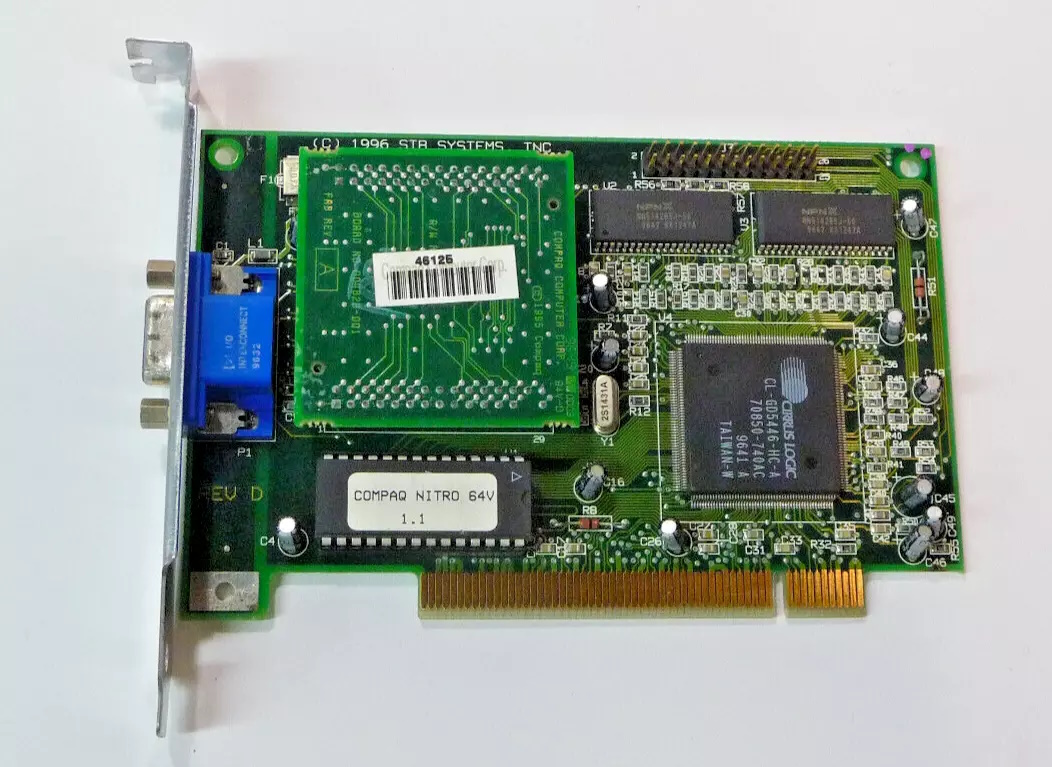

A CL-GD5446-based STB Nitro 64 Video for the OEM Market with optional 1 MB memory expansion module
